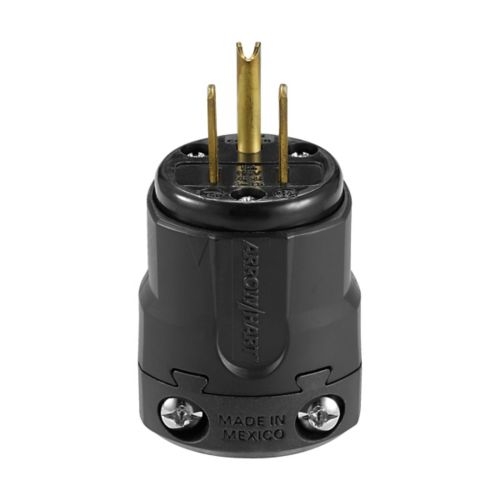

ARROW-HART AH5266NBLK 15A 125V Black Ultra Grip Straight Blade Plug
Product Specifications
- Catalog Description: ULTRA GRIP STRAIGHT BLADE PLUG, 15 AMP, 125V, NEMA 5-15P, BLACK
- Category: Plugs & Receptacles
- Full Technical Description: Ultra Grip Straight Blade Plug; Extra Heavy-Duty Industrial Specification Grade; 15 Ampere Current Rating; 125 Volt Rating; Two-Pole, Three-Wire Grounding Configuration; NEMA 5-15P Configuration; Black Color; Nylon Face and Body Material; Brass Contact Material; Back Wire Wiring Method; Screw Connection Type; Straight Body Style; Accepts #18 to #12 AWG Wire; Cord Range 0.33 to 0.66 Inch Diameter; 14 lbf-in Torque Rating; RoHS Compliant; cULus Listed, NOM, and Federal Specification Classification W-C-596F Certified
- Manufacturer: Eaton Wiring Devices
- Manufacturer Brand: ARROW-HART
- Sub Category: Straight Blade Plug
- UPC 12 Digit: 032664737527
- SKU Name: AH5266NBLK
