Product information
Overview

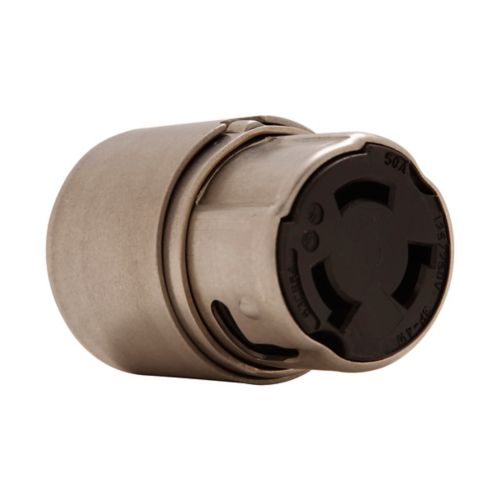

ARROW-HART AH63CR64 50A 125/250V Corrosion Resistant Locking Connector
Product Specifications
- Catalog Description: CORROSION RESISTANT LOCKING CONNECTOR, 50 AMP, 125/250V, 3-POLE, 4-WIRE, ARMORED
- Category: Plugs & Receptacles
- Full Technical Description: Corrosion Resistant Locking Connector; Armored Design Type; Marine Device Grade; 50 Ampere Current Rating; 125/250 Volt Rating; Three-Pole, Four-Wire Grounding Configuration; Non-NEMA Configuration; Back Wiring Method; Stainless Steel Material; Steel Color; Glass-Filled Nylon Face and Body Material; Nickel-Plated Brass Contact Material; Cord Diameter Range 0.68 to 1.33 Inch; Accepts #12 to #6 AWG Wire; 25 lbf-in Torque Rating; Operating Temperature Range -40 to 95 Deg C; Impact and Chemical Resistant; Product Length/Depth 5.73 Inch; Product Height 2.68 Inch; Product Width 3.1 Inch; cULus Listed and CSA Certified
- Manufacturer: Eaton Wiring Devices
- Manufacturer Brand: ARROW-HART
- Sub Category: Corrosion Resistant Locking Connector
- UPC 12 Digit: 040893679624
- SKU Name: AH63CR64
