Overview

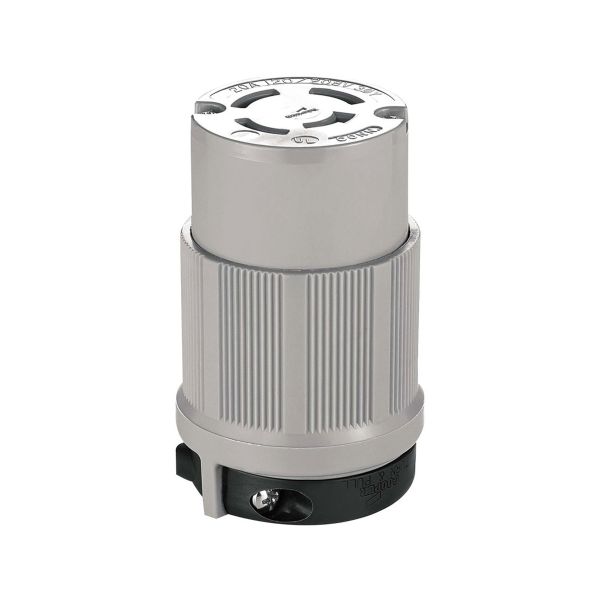

Arrow Hart AH7413 Industrial Locking Connector, 20A, 120/208V, 4-Pole 4-Wire

Product Specifications

• Brand: Arrow Hart
• Manufacturer: Eaton / Arrow Hart
• Catalog Number: AH7413
• Product Type: Locking Electrical Connector
• Connector Type: Non-NEMA Locking Connector
• Description: Industrial specification-grade 20A, 120/208V, 4-pole, 4-wire locking electrical connector
• Current Rating: 20 A
• Voltage Rating: 120/208 V AC
• Wiring Configuration: 4-Pole, 4-Wire
• NEMA Configuration: Non-NEMA
• Wire Gauge Compatibility: #18 to #10 AWG
• Wiring Type: Back Wiring
• Material: Impact-Resistant Nylon
• Body Color: Gray
• Safety Grip Design: Ergonomic housing provides a comfortable, slip-resistant grip during coupling and uncoupling
• Locking Mechanism: Half-turn twist-lock design helps prevent accidental disconnects from strain or vibration
• Application: Industrial Power Connections, Locking Electrical Connections, Commercial Equipment Wiring, Machinery Power Supply and Heavy-Duty Electrical Installations
• Category: Plugs & Receptacles
• Catalog Description: Arrow Hart AH7413 is an industrial specification-grade, non-NEMA-rated locking connector rated at 20A at 120/208V, built with a rugged gray nylon body and a safety-grip design for secure electrical connections.
• Full Technical Description: Arrow Hart AH7413 Industrial Locking Electrical Connector; 20 Amp, 120/208 Volt AC Rating; 4-Pole, 4-Wire Non-NEMA Configuration; Accepts #18 to #10 AWG Wiring; Back-Wired Design for Secure Installations; Rugged Impact-Resistant Gray Nylon Body with Ergonomic Safety Grip; Twist-Lock Mechanism Helps Prevent Accidental Disconnects Caused by Vibration, Strain or Harsh Industrial Conditions
• Manufacturer Brand: Arrow Hart
• Sub Category: Industrial Locking Connectors
• SKU Name: Arrow Hart AH7413 20A 120-208V Locking Connector
