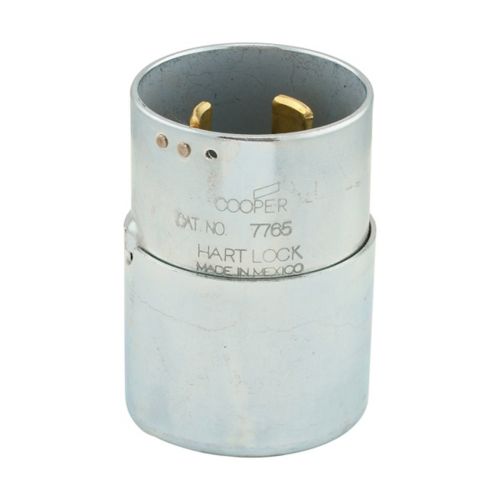

Arrow Hart AH7765 Armored California Standard Locking Plug, 50A, 600V AC / 250V DC, Industrial Grade

Product Specifications

• Brand: Arrow Hart
• Manufacturer Part Number: AH7765
• Catalog Number: 7765
• Product Type: Locking Plug
• Application: Industrial
• Device Grade: Extra Heavy Duty
• Amperage Rating: 50 A
• Voltage Rating: 600 Vac, 250 Vdc
• Number of Poles: Three-Pole
• Number of Wires: 4 (including ground)
• Contact Material: Zinc-Plated Brass
• Cord Diameter: 0.68–1.33 in (17.3–28.6 mm)
• Material: Stainless Steel, Glass-Filled Nylon Body
• Face / Body Material: Glass-Filled Nylon
• Color: Steel
• Operating Temperature: -40 to 90 °C (-40 to 194 °F)
• Wiring Method: Back Wiring
• Allowable Wire Size: #10–6 AWG
• NEMA Configuration: Non-NEMA
• Torque Rating: 45 lbf-inch
• Special Features: Armored
• Standards / Approvals: CSA Certified, cULus Listed
• Product Weight: 1.2 lb
• Dimensions: 5.73 in Length x 2.68 in Height x 3.1 in Width
• Application: Ideal for heavy-duty industrial and commercial use where a secure, armored, high-amperage connection is required. Suitable for harsh environments with robust protection against mechanical stress.
• Category: Industrial Locking Electrical Plugs
• Catalog Description: Arrow Hart AH7765 is an armored California standard locking plug rated at 50A, 600V AC / 250V DC, designed for extra-heavy-duty industrial applications with a stainless steel body and glass-filled nylon construction.
• Full Technical Description: Arrow Hart AH7765 Locking Plug; 50A, 600V AC / 250V DC; Three-Pole, Four-Wire with Ground; Stainless Steel and Glass-Filled Nylon Construction; Armored Design for Industrial Use; Back Wiring; Suitable for #10–6 AWG; Non-NEMA Configuration; CSA and cULus Approved.
• Manufacturer Brand: Arrow Hart
• Sub Category: Armored Locking Plugs
• SKU Name: ah7765 armored locking plug 50a 600v industrial
