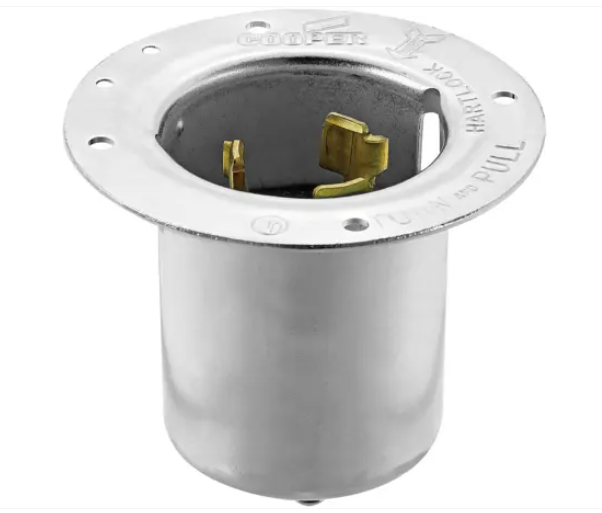

Eaton AHCS6375 Industrial Grade Flanged Inlet, 50A, 125/250V, 3-Pole, 4-Wire, Non-NEMA

Overview

Eaton Arrow Hart AHCS6375 Industrial Grade Flanged Inlet, 50A, 125/250V, 3-Pole, 4-Wire, Non-NEMA

Product Specifications

• Brand: Eaton Arrow Hart
• Manufacturer: Eaton Arrow Hart
• Manufacturer Part Number: AHCS6375
• Product Type: Locking Flanged Inlet
• Description: Flanged Inlet 50A 125/250V 3P4W H/L, 10-6 AWG
• Product Series: Industrial Grade 50A Receptacle
• Family Series: Eaton Plugs & Receptacles, Industrial Grade 50A Receptacle Series
• Amperage Rating: 50 A
• Voltage Rating: 125/250 V
• Number of Poles: 3
• Number of Wires: 4
• Phase: 1
• Connection Type: Flanged Inlet
• NEMA Configuration: Non-NEMA
• Watertight: No
• Isolated Ground: No
• Color: Metal
• Construction: Rugged Glass-Filled Nylon with Heavy Gauge Steel Shells
• Contacts: One-piece brass alloy or nickel-plated brass (marine grade) for continuity in power and ground circuits
• Mounting: Rugged single-piece heavy-duty plated strap for corrosion resistance
• Standards/Approvals: UL
• Wire Size: #10–6 AWG
• Device Grade: Industrial
• Design Type: Flanged Inlet, California Standard
• Application: Industrial power connections, machinery, equipment requiring secure flanged locking connections
• Catalog Description: Eaton Arrow Hart AHCS6375 is a 50A, 125/250V flanged inlet designed for industrial applications, 3-pole, 4-wire, Non-NEMA, with rugged construction and reliable performance
• Full Technical Description: Eaton Arrow Hart AHCS6375 Industrial Grade Flanged Inlet; 50 Amp, 125/250 Volt; 3-Pole, 4-Wire Non-NEMA California Standard; Back and Side Wire Terminals; One-Piece Brass Alloy or Nickel-Plated Contacts; Rugged Glass-Filled Nylon Body with Heavy-Gauge Steel Shell; Designed for #10–6 AWG Conductors; Industrial-Grade Performance, Durable Construction
• Manufacturer Brand: Eaton Arrow Hart
• SKU Name: eaton arrow hart ahcs6375 flanged inlet 50a 125/250v 3p4w
