Product information
Overview

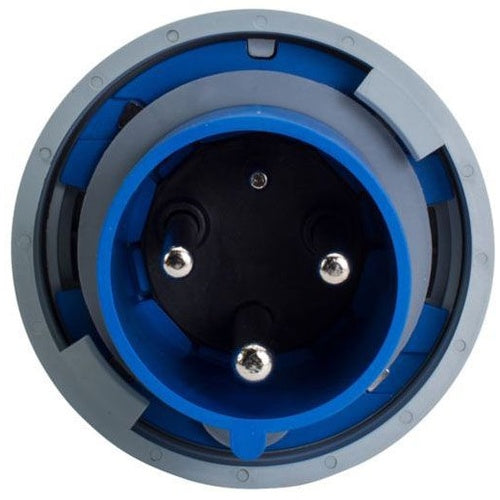

Eaton Arrow Hart AH360P6W Pin and Sleeve Plug, 60A, 250V, 2P3W, Watertight Blue
Product Specifications
- UPC: 040893622910
- Brand: Eaton Arrow Hart
- Manufacturer: Eaton
- Catalog Number: AH360P6W
- Product Name: Eaton Arrow Hart Pin and Sleeve Plug
- Product Type: Pin and Sleeve Plug
- Type: Plug
- Design Type: Pin and Sleeve Plug
- Description: Plug Pin & Sleeve 60A 250V 2P3W Watertight Blue
- Amperage Rating: 60A
- Voltage Rating: 250 V
- Number Of Poles: 2
- Number Of Wires: 3
- Grounding: Three-Wire Grounding
- Gender: Male
- Device Grade: Extra Heavy-Duty
- Wiring Method: Back Wire
- Allowable Wire Size: #8 to #2 AWG; #10 to #2 AWG Ground; #12 to #16 AWG Pilot
- Cord Diameter: 0.66 to 1.5 in / 1.68 to 3.81 cm
- Contact Material: Nickel-Plated Brass
- Material: Nylon
- Face/Body Material: Nylon
- Color: Blue
- Environmental Resistance: IP69K; IP67
- Special Features: IP69K Rated
- Torque Rating: 28 lbf-in
- Certifications: cRUus
- Product Length/Depth: 11.5 in
- Product Height: 5.125 in
- Product Width: 5.125 in
- Product Weight: 1.828 lb
- Application: Industrial Power Connections, Food and Beverage Facilities, Wastewater Treatment, Watertight Electrical Connections and Extra Heavy-Duty Plug Installations
- Category: Plugs & Receptacles
- Sub Category: Pin and Sleeve Plugs
- Catalog Description: Eaton Arrow Hart AH360P6W is an extra-heavy-duty pin-and-sleeve plug rated at 60A at 250V with a 2-pole, 3-wire grounding configuration, a blue nylon body and IP69K/IP67 environmental protection.
- Full Technical Description: Eaton Arrow Hart AH360P6W Pin and Sleeve Plug; 60 Amp, 250 Volt, 2-Pole, 3-Wire Grounding Male Plug; Extra Heavy-Duty Design with Back Wire Termination; Supports #8 to #2 AWG Conductors, #10 to #2 AWG Ground and #12 to #16 AWG Pilot Wire; Features Blue Nylon Body, Nickel-Plated Brass Contacts, 0.66 to 1.5 Inch Cord Diameter Range, 28 lbf-in Torque Rating and IP69K/IP67 Environmental Resistance for Industrial, Food and Beverage and Wastewater Treatment Applications
- Manufacturer Brand: Eaton Arrow Hart
- SKU Name: eaton arrow hart ah360p6w pin and sleeve plug
