Blackburn AJ 1/2To1 Conduit Grounding ClAMP

Overview

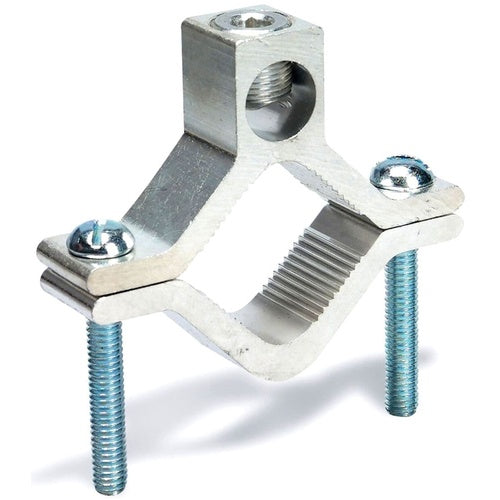

Blackburn AJ 1/2To1 Conduit Grounding Clamp

Product Specifications

• UPC: 78378680297
• Used On: Copper/Aluminum Cable to Pipe/Rod
• Catalog Number: AJ
• Brand Name: Blackburn
• Conductor Size: 14 AWG Solid to 1/0 AWG Standard
• Ips Size: 1/2 to 1 Inch
• Size: 5/8 Inch Length x 2-1/4 Inch Width x 2-1/2 Inch Height
• Installation: (2) Screw Connector to Pipe, (1) Screw Wire Connector
• Material: Tin Plated Aluminum
• Approval: UL, CSA
• Catalog Description: ALUMINUM DUAL-RATED WATERPIPE GROUND CLAMP FOR WIRE RANGE 14 - 1/0, WATER PIPE SIZE 1/2 - 1
• Category: Ground Rods & Grounding Systems
• Full Technical Description: Tin Plated Aluminum Material; 5/8 Inch Length X 2-1/4 Inch Width X 2-1/2 Inch Height Size; Copper/Aluminum Cable to Pipe/Rod Used on; (2) Screw Connector to Pipe, (1) Screw Wire Connector Installation; UL, CSA Approval; 14 AWG Solid to 1/0 AWG Standard Conductor Size; 1/2 to 1 Inch IPS Size
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 783786802975
• SKU Name: aj blackburn

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
