Blackburn AJ-2124 2-1/2To4 Grounding ClAMP

Overview

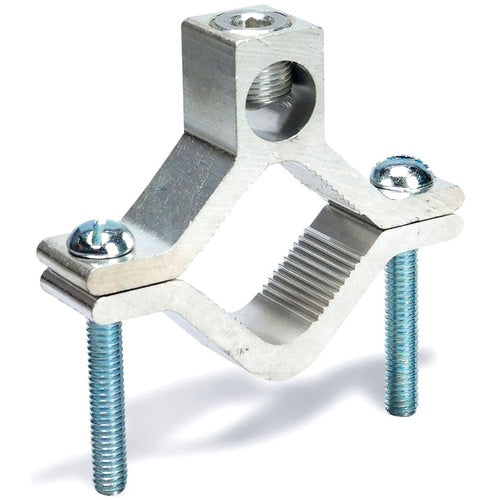

Blackburn AJ-2124 2-1/2To4 Grounding Clamp

Product Specifications

• UPC: 78378680299
• Used On: Copper/Aluminum Cable to Pipe/Rod
• Catalog Number: AJ-2124
• Brand Name: Blackburn
• Conductor Size: 6 AWG to 250 KCMIL
• Ips Size: 2-1/2 to 4 Inch
• Size: 7/8 Inch Length x 6-5/16 Inch Width x 5-9/16 Inch Height
• Installation: (2) Screw Connector to Pipe, (1) Screw Wire Connector
• Material: Tin Plated Aluminum
• Approval: UL, CSA
• Catalog Description: ALUMINUM DUAL-RATED WATERPIPE GROUND CLAMP FOR WIRE RANGE 6 - 250, WATER PIPE SIZE 2 1/2 - 4
• Category: Ground Rods & Grounding Systems
• Full Technical Description: Tin Plated Aluminum Material; 7/8 Inch Length X 6-5/16 Inch Width X 5-9/16 Inch Height Size; Copper/Aluminum Cable to Pipe/Rod Used on; (2) Screw Connector to Pipe, (1) Screw Wire Connector Installation; UL, CSA Approval; 6 AWG to 250 kcmil Conductor Size; 2-1/2 to 4 Inch IPS Size
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 783786802999
• SKU Name: aj2124 blackburn

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
