Blackburn AL16 AL Series 2-Hole Compression Lug, 250 to 300 kcmil ACSR/Copper Conductor

Overview

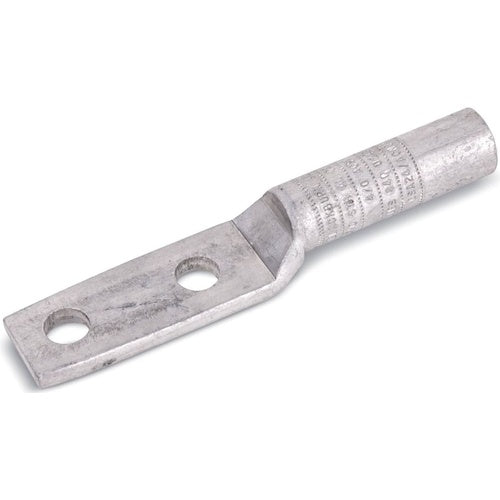

Blackburn AL16 AL Series 2-Hole Compression Lug, 250 to 300 kcmil ACSR/Copper Conductor

Product Specifications

• UPC: 783786047291
• Brand: Blackburn®
• Manufacturer: ABB / ABB Installation Products
• Manufacturer Part Number: AL16
• Catalog Number: AL16
• Product Type: Compression Lug
• Series: AL Series
• Type: 2-Hole
• Conductor Size: 250 to 300 kcmil
• Conductor Type: ACSR/Copper
• Material: Aluminum
• Barrel Size: 0.574 to 0.679 in Dia
• Barrel Type: Blind End; Long; Straight
• Stud Size: 1-3/4 in
• Hole Spacing: 1-3/4 in
• Tongue Size: 1-1/2 in W x 7/16 in THK
• Tongue Type: Straight
• Overall Length: 7-5/8 in
• Die Code: B80EA / EEI 13A / 655 / 96H / CSA 26 / 1-1/8
• Country Of Origin: Mexico
• Application: ACSR/Copper Conductor Termination, Power Distribution Connections, Utility Compression Lug Installations and Electrical Grounding Applications
• Category: Compression Lugs
• Catalog Description: Blackburn AL16 AL Series 2-hole compression lug is designed for 250 to 300 kcmil ACSR/copper conductors, with an aluminum construction, a long straight blind-end barrel, and 1-3/4-inch stud spacing.
• Full Technical Description: Blackburn AL16 AL Series 2-Hole Compression Lug; Designed for 250 to 300 kcmil ACSR/Copper Conductors; Aluminum Construction with Blind End, Long, Straight Barrel; 0.574 to 0.679 Inch Barrel Diameter; 1-3/4 Inch Stud Size and Hole Spacing; Straight Tongue Measuring 1-1/2 Inch Wide x 7/16 Inch Thick; 7-5/8 Inch Overall Length; Die Code B80EA / EEI 13A / 655 / 96H / CSA 26 / 1-1/8 for Utility and Power Distribution Applications
• Manufacturer Brand: ABB Blackburn®
• Sub Category: Aluminum Compression Lugs
• SKU Name: blackburn al16 2 hole compression lug
