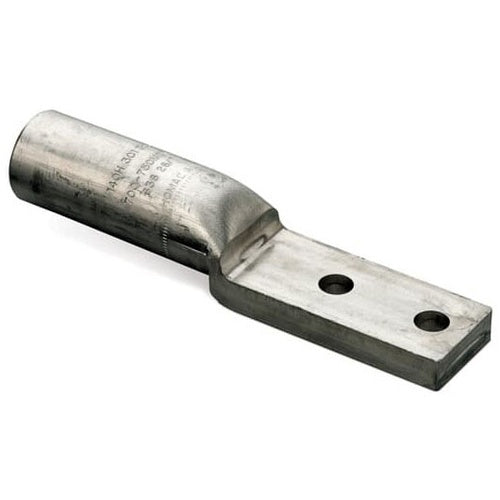

Homac AL350NTN 2-Hole Aluminum Compression Lug for 266.8 to 400 kcmil Conductors

Overview

Homac AL350NTN 2-Hole Aluminum Compression Lug for 266.8 to 400 kcmil Conductors

Product Specifications

• UPC: 78502314052
• Brand: Homac®
• Manufacturer: Homac
• Catalog Number: AL350NTN
• Product Type: Compression Lug
• Type: 2-Hole
• Conductor Size: 350 kcmil; 336.4 kcmil; 400 kcmil; 266.8 kcmil
• Conductor Type: ACSR; Copper; Compact; Stranded
• Material: Aluminum
• Barrel Size: 1-7/64 in OD x 2-3/16 in L
• Mounting Hole Size: 9/16 in Dia
• Stud Size: 1/2 in
• Hole Spacing: 1-3/4 in
• Tongue Size: 3-9/16 in L x 1-35/64 in W x 23/64 in THK
• Tongue Type: Straight
• Overall Length: 6-9/16 in
• Die Code: 96; 299; 655; 1-1/8-2; 13A
• Application: ACSR Conductor Termination, Copper Conductor Connections, Utility Compression Lug Installations, Power Distribution and Electrical Grounding Applications
• Category: Compression Lugs
• Catalog Description: Homac AL350NTN is a 2-hole aluminum compression lug designed for ACSR, copper, compact and stranded conductors from 266.8 to 400 kcmil.
• Full Technical Description: Homac AL350NTN 2-Hole Aluminum Compression Lug; Designed for 350 kcmil, 336.4 kcmil, 400 kcmil and 266.8 kcmil ACSR, Copper, Compact and Stranded Conductors; Features 1-7/64 Inch OD x 2-3/16 Inch Long Barrel, 1/2 Inch Stud Size, 9/16 Inch Mounting Hole Diameter and 1-3/4 Inch Hole Spacing; Straight Tongue Measures 3-9/16 Inch Long x 1-35/64 Inch Wide x 23/64 Inch Thick; Suitable for Utility, Grounding and Power Distribution Applications
• Manufacturer Brand: Homac®
• Sub Category: Aluminum Compression Lugs
• SKU Name: homac al350ntn 2 hole aluminum compression lug
