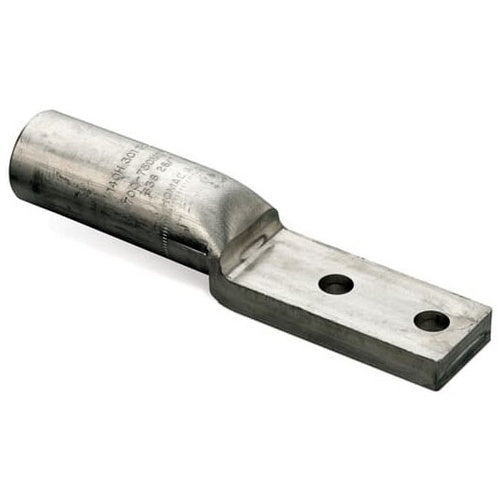

Homac AL500NTN Tin-Plated Aluminum Two-Hole NEMA Lug, 500 kcmil, Dual-Rated

Overview

Homac AL500NTN Tin-Plated Aluminum Two-Hole NEMA Lug, 500 kcmil, Dual-Rated

Product Specifications

• Brand: Homac
• Manufacturer: Homac
• Catalog Number: AL500NTN
• Product Type: Two-Hole NEMA Lug
• Connection Type: Compression
• Wire Size: 500 kcmil (supports 477 kcmil and 600 Compact ACSR conductors)
• Conductor Compatibility: Aluminum; Copper
• Dual Rated: Yes
• Material: Tin-Plated Aluminum
• Length: 7-5/16 in
• Pad Dimensions: 1-3/4 in W x 3-9/16 in L x 29/64 in Thk
• Barrel Dimensions: 2-15/16 in L x 1-5/16 in OD
• Hole Diameter: 9/16 in (2 holes)
• Hole Spacing: 1-3/4 in center-to-center
• Oxide Inhibitor: Prefilled
• Color Code: Pink Cap
• Installing Dies: 106A, 300, 317, 1-5/16, 14A, 15A, 1-5/16H
• Special Features: Dual-rated for aluminum and copper, prefilled with oxide inhibitor, marked with conductor size and die references, high-strength aluminum construction
• Standard: ANSI C119.4
• Application: General Purpose Aluminum and Copper Terminations, Power Distribution, Industrial Electrical Installations, Compression Lug Connections
• Category: Wire Connectors
• Catalog Description: Homac AL500NTN is a tin-plated aluminum two-hole NEMA lug designed for 500 kcmil conductors, dual-rated for aluminum and copper, with prefilled oxide inhibitor to prevent oxidation and maintain conductivity.
• Full Technical Description: Homac AL500NTN Tin-Plated Aluminum Two-Hole NEMA Lug; Supports 500 kcmil Aluminum/Copper Conductors; Dual-Rated; Prefilled with Oxide Inhibitor to Prevent Oxidation and Moisture; Marked with Conductor Size and Installing Dies Reference; Barrel 2-15/16 in L x 1-5/16 in OD; Pad 1-3/4 in W x 3-9/16 in L x 29/64 in Thk; ANSI C119.4 Certified
• Manufacturer Brand: Homac
• Sub Category: Two-Hole Aluminum Compression Lugs
• SKU Name: homac al500ntn tin-plated aluminum two-hole nema lug
