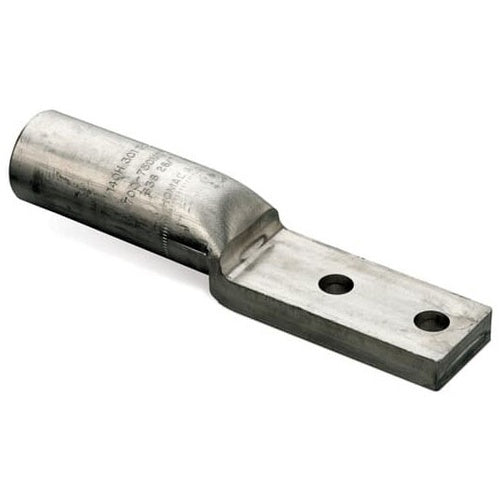

Homac AL600NTN 2-Hole Compression Lug for Aluminum/Copper Conductors, 600 kcmil

Overview

Homac AL600NTN 2-Hole Compression Lug for Aluminum/Copper Conductors, 600 kcmil

Product Specifications

• Brand: Homac
• Manufacturer: Homac
• Manufacturer Part Number: AL600NTN
• Product Type: Compression Lug
• Connection Type: Compression
• Hole Configuration: 2-Hole
• Conductor Size: 600 kcmil
• Conductor Type: Aluminum/Copper
• Stud Size: 1/2 in
• Tongue Size: 3-5/8 in L x 1-3/4 in W
• Tongue Type: Straight
• Barrel Length: 2-15/16 in L
• Overall Length: 7-3/4 in
• Mounting Hole Size: 9/16 in
• Hole Spacing: 1-3/4 in
• Material: Aluminum
• Finish: Tin-plated
• Die Codes: 1-5/16, 115H, 786, 936, 473
• Features: Dual-rated for Aluminum and Copper, Pre-filled with Oxide Inhibitor, High Strength and Conductivity, Easy Identification with Die References
• Application: General Purpose Electrical Connections, Industrial and Commercial Wire Terminations, Aluminum and Copper Conductor Terminations
• Weight: Not specified
• Category: Wire Connectors
• Sub Category: Compression Lugs
• Catalog Description: Homac AL600NTN is a 2-hole compression lug for 600 kcmil aluminum or copper conductors, featuring a straight tongue, tin-plated finish, dual-rated, and pre-filled with oxide inhibitor.
• Full Technical Description: Homac AL600NTN 2-Hole Compression Lug; 600 kcmil Aluminum/Copper Conductors; Straight Tongue 3-5/8 in L x 1-3/4 in W; Barrel 2-15/16 in L; Overall Length 7-3/4 in; 1/2 in Stud; Dual-Rated with Tin-Plated Finish and Oxide Inhibitor; Includes Die Codes 1-5/16, 115H, 786, 936, 473; High Strength, High Conductivity, Easy Identification for Industrial and Commercial Electrical Terminations
• Manufacturer Brand: Homac
• SKU Name: homac al600ntn 2-hole compression lug 600 kcmil
