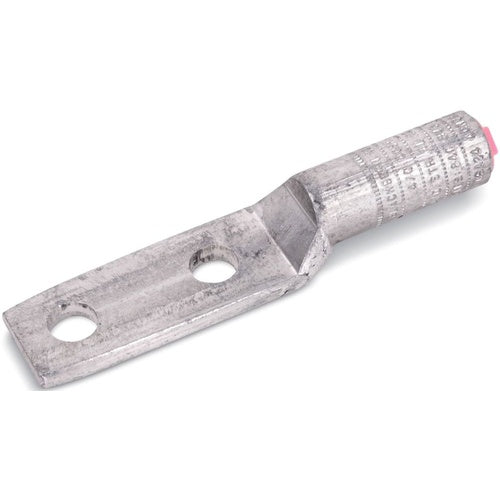

Blackburn ALS44 Aluminum Two-Hole Compression Lug for Aluminum and Copper Conductors, 636–900 kcmil

Overview

Blackburn ALS44 Aluminum Two-Hole Compression Lug for Aluminum and Copper Conductors, 636–900 kcmil

Product Specifications

• Brand: Blackburn
• Manufacturer: Blackburn (ABB)
• Manufacturer Part Number: ALS44
• UPC: 78378605090
• GTIN: 00783786050901
• Product Type: Compression Lug
• Number of Holes: Two-Hole
• Hole Size / Bolt: 1/2 Inch Bolt Size
• Conductor Size Range: 636 (26/7) – 900 kcmil, includes 715 (54/7), 666 (26/7), 666 (54/7), 750–800 Stranded, 900 Compact
• Connection Type: Compression
• Mounting Type: NEMA Standard Mounting Holes
• Barrel Type: Straight, Long Barrel, Blind-End
• Material: Aluminum
• Compatible Conductors: Aluminum and Copper
• Application: General Purpose Terminations for Large Aluminum and Copper Conductors
• Length: 7-1/4 Inch
• Width: 1-5/8 Inch
• Standards / Hydraulic Dies: 1-1/2, 6024, 125H, CSA 30
• Catalog Description: ALS44 is a two-hole aluminum compression lug designed for large aluminum and copper conductors, featuring a long, straight barrel and a 1/2-inch bolt.
• Full Technical Description: Blackburn ALS44 Aluminum Two-Hole Compression Lug; Supports 636–900 kcmil Conductor Range; Compatible with Aluminum and Copper Conductors; Straight Long Barrel, Blind-End Design; NEMA Standard Mounting Holes; Uses Hydraulic Dies 1-1/2, 6024, 125H, CSA 30; Ideal for Industrial and Heavy-Duty Electrical Applications
• Manufacturer Brand: Blackburn
• SKU Name: blackburn als44 aluminum two-hole compression lug
