Overview

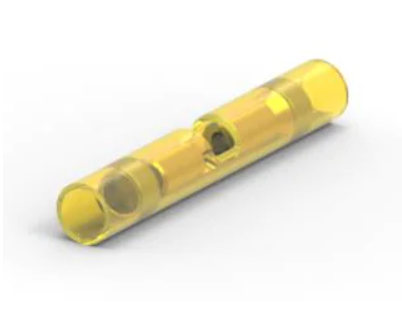

TE Connectivity AMP 327639 PIDG Fully Insulated Yellow Butt Splice Connector, 10-12 to 18-22 AWG

Product Specifications

• Brand: TE Connectivity
• Manufacturer: TE Connectivity AMP Connectors
• Manufacturer Part Number: 327639
• Product Type: Butt Splice Connector
• Series: PIDG
• Wire Gauge: 10-12 to 18-22 AWG
• Color: Yellow (Translucent)
• Insulation: Fully Insulated, Nylon
• Insulation Type: Pre-Insulated
• Terminal Type: Butt Splice, Inline, Individual Openings
• Termination Method: Crimp
• Packaging: Bulk
• Features: Serrated Mating Area, Step Up/Step Down
• Contact Base Material: Copper
• Terminal Plating Material: Tin
• Barrel Type: Closed
• Part Status: Active
• Category: Connectors, Interconnects
• Sub Category: Wire Splice Connectors
• Catalog Description: TE Connectivity AMP 327639 PIDG yellow butt splice connector for 10-12 to 18-22 AWG wire, fully insulated, crimp-style, inline with serrated barrel and step-up/step-down design.
• Full Technical Description: TE Connectivity AMP 327639 PIDG Fully Insulated Butt Splice; Wire size 10-12 to 18-22 AWG; Yellow translucent nylon insulation; Inline configuration with individual openings; Crimp termination; Serrated barrel with step-up/step-down feature for secure mating; Copper contact with tin plating; Closed barrel design for reliable electrical connections.
• SKU Name: te connectivity amp 327639 yellow insulated butt splice connector
