Overview

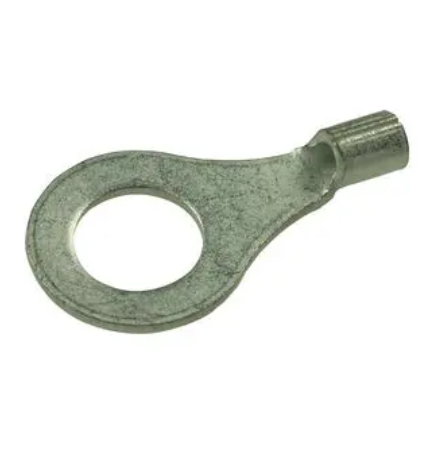

AMP 34113 Closed Ring Tongue Terminal, 22–16 AWG, 1/4 in (M6) stud, straight, uninsulated

Product Specifications

• Brand: TE Connectivity AMP
• Manufacturer: TE Connectivity AMP
• Manufacturer Part Number: 34113
• Product Type: Ring Terminal
• Terminal Type: Closed Ring Tongue Terminal
• Stud Size: 1/4 in (M6)
• Number of Holes: 1
• Wire Size: 22–16 AWG (.3–1.42 mm²)
• CMA Range: 509–3260
• Barrel Type: Closed
• Terminal Orientation: Straight
• Terminal Plating Material: Tin
• Tongue Thickness: 0.79 mm [.031 in]
• Barrel Inside Diameter: 1.55 mm [.061 in]
• Product Length: 21.74 mm [.856 in]
• Insulation Option: Uninsulated
• Wire Insulation Support: Without
• Operating Temperature Range: 0 – 170 °C (0 – 338 °F)
• Compatible Wire Base Material: Copper
• Compatible Wire Plating Material: Tin
• Category: Connectors, Interconnects
• Sub Category: Ring Terminals
• Application: Electrical connections requiring secure termination with closed ring tongue terminals
• Catalog Description: TE Connectivity AMP 34113 is a closed ring tongue terminal for 22–16 AWG wires, featuring a 1/4 in (M6) stud, tin-plated closed barrel, and uninsulated straight design.
• Full Technical Description: TE Connectivity AMP 34113 Closed Ring Tongue Terminal; Supports 22–16 AWG conductors; Straight orientation; Tin-plated, closed barrel; 1/4 in (M6) stud; Tongue thickness 0.79 mm; Barrel ID 1.55 mm; Product length 21.74 mm; Operating temperature 0–170 °C; Compatible with copper wires; Uninsulated for direct connections.
• SKU Name: te connectivity amp 34113 closed ring tongue terminal
