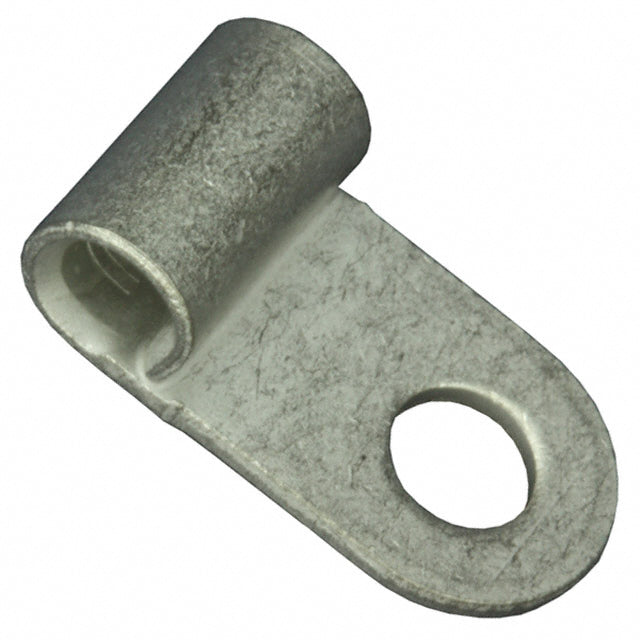

TE Connectivity AMP 36270 Ring Terminal, 10–12 AWG, #8 Stud, Crimp/Flag, Non-Insulated

Product Specifications

• Brand: TE Connectivity AMP
• Manufacturer: TE Connectivity AMP
• Manufacturer Part Number: 36270
• Product Type: Ring Terminal
• Terminal Type: Circular, Flag
• Wire Gauge: 10–12 AWG
• Stud/Tab Size: 8 Stud
• Insulation: Non-Insulated
• Part Status: Active
• Mounting Type: Free Hanging (In-Line), Right Angle
• Contact Material: Copper
• Contact Finish: Tin
• Terminal Features: Brazed Seam, Serrated Termination
• Length – Overall: 0.702" (17.83 mm)
• Thickness: 0.039" (0.99 mm)
• Width – Outer Edges: 0.375" (9.53 mm)
• Category: Connectors, Interconnects
• Sub Category: Ring Terminals
• Application: Industrial and electrical wiring for 10–12 AWG conductors
• Catalog Description: TE Connectivity AMP 36270 ring terminal, 10–12 AWG, #8 stud, crimp/flag style, non-insulated, designed for secure electrical connections.
• Full Technical Description: TE Connectivity AMP 36270 Ring Terminal; Supports 10–12 AWG conductors; Non-insulated; #8 stud; Copper with tin plating; Circular, flag terminal configuration; Free-hanging, right-angle mounting; Features brazed seam and serrated termination for industrial and electrical wiring applications.
• SKU Name: te connectivity amp 36270 ring terminal
