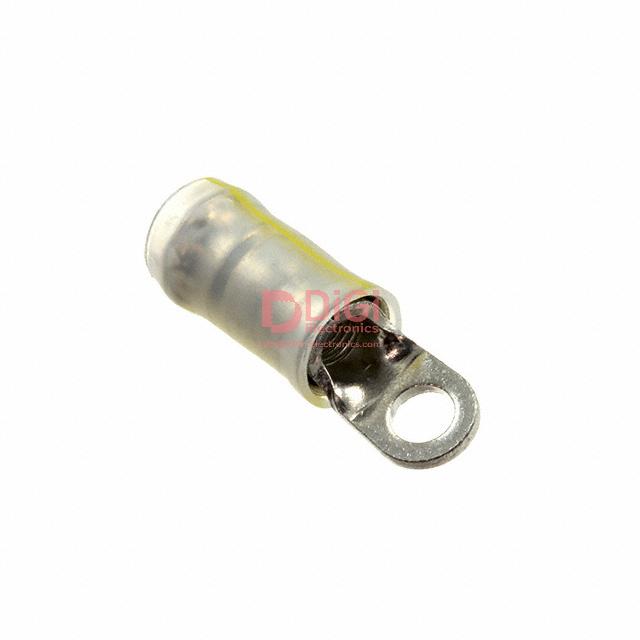

TE Connectivity AMP 545931 PIDG Insulated Ring Terminal, 10–12 AWG, #6 Stud, Yellow Stripe

Product Specifications

• Brand: TE Connectivity / AMP
• Manufacturer: TE Connectivity AMP Connectors
• Manufacturer Part Number: 545931
• Base Product Number: 54593
• Product Type: Ring Terminal
• Series: PIDG
• Terminal Type: Circular, Ring Terminal
• Stud/Tab Size: #6
• Wire Gauge: 10–12 AWG
• Wire Insulation Diameter: 0.150" ~ 0.230" (3.81 mm ~ 5.84 mm)
• Termination: Crimp
• Insulation: Insulated
• Insulation Material: Polyvinylidene Fluoride (PVDF)
• Color: Natural, Yellow Stripe
• Features: Serrated Termination
• Contact Material: Copper
• Contact Finish: Tin-Lead
• Thickness: 0.039" (0.99 mm)
• Width - Outer Edges: 0.250" (6.35 mm)
• Length - Overall: 0.938" (23.83 mm)
• Mounting Type: Free Hanging (In-Line)
• Part Status: Active
• Category: Connectors & Terminals
• Sub Category: Insulated Ring Terminals
• Application: Electrical terminations, industrial wiring, automotive, and commercial electrical installations
• Catalog Description: TE Connectivity AMP 545931 is a PIDG insulated ring terminal for 10–12 AWG wire with #6 stud, yellow stripe, serrated termination, and PVDF insulation.
• Full Technical Description: TE Connectivity AMP 545931 Ring Terminal; PIDG series; insulated with PVDF; compatible with 10–12 AWG wire; #6 stud; serrated termination for secure crimp; copper conductor with tin-lead plating; yellow stripe for easy identification; overall length 0.938"; designed for industrial, commercial, and automotive wiring applications.
• SKU Name: TE Connectivity AMP 545931 Insulated Ring Terminal 10- 12 AWG #6 Stud Yellow Stripe
