Overview

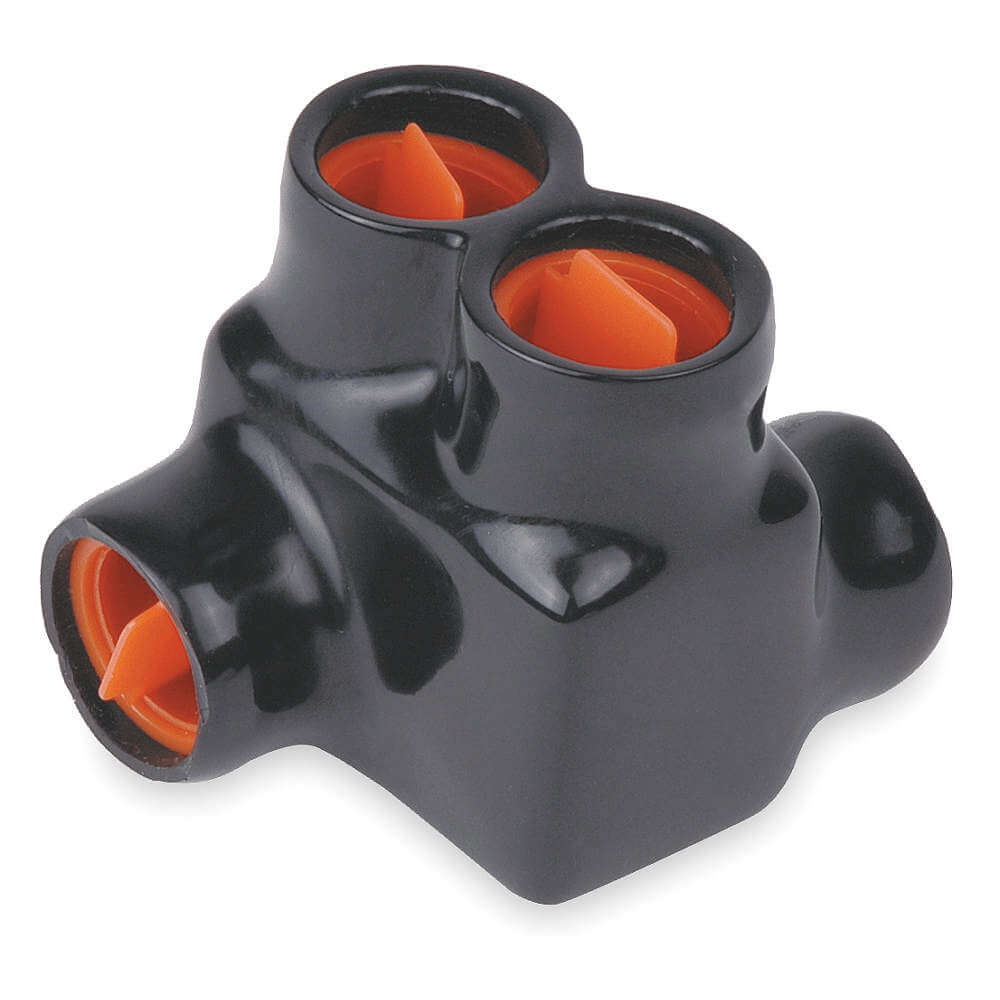

Blackburn AMTT250 Insulated Aluminum Multi-Tap Connector, Black, 2-Port, 600V

Product Specifications

• Brand: Blackburn / T&B
• Manufacturer: T&B / Blackburn
• Manufacturer Part Number: AMTT250
• Base Product Number: AMTT250
• Product Type: Multi-Tap Connector
• Connector Type: Double Sided Entry
• Conductor Material Compatibility: Aluminum, Copper, Copper-Clad Aluminum
• Body Material: Aluminum
• Insulation Material: PVC
• Color: Black
• Voltage Rating: 600V
• Maximum Conductor Size: 250 kcmil
• Minimum Conductor Size: 10 AWG
• Number of Ports: 2
• Hex Size / Head Type: 5/16", Hex Head
• Length: 2.12 in
• Width: 2.63 in
• Height: 2.30 in (5.84 cm)
• Finish: PVC Coating
• Screw Material & Finish: Aluminum, Tin Plated
• Maximum Operating Temperature: 194°F
• Standards/Certifications: CSA 6591; UL E9809
• Special Features: All cable entries equipped with anti-oxidation compound, insulated, reduces outage costs, improves space efficiency
• Country of Origin: US
• HS Code: 8536904000
• Weight: 0.1215 kg
• Application: Multi-port electrical connections for aluminum, copper, and copper-clad aluminum conductors in industrial and commercial wiring
• Catalog Description: Blackburn AMTT250 is a black, PVC-insulated aluminum multitap connector with 2 ports, double-sided entry, rated for 600V and up to 250 kcmil conductors, CSA and UL approved.
• Full Technical Description: Blackburn AMTT250 Insulated Aluminum Multi-Tap Connector; 2-port double-sided entry; PVC insulation; 600V rated; accommodates 10 AWG to 250 kcmil conductors; tin-plated aluminum screws; anti-oxidation compound on all cable entries; complies with CSA 6591 and UL E9809; length 2.12 in, width 2.63 in, height 2.30 in; ideal for industrial and commercial multi-port wiring applications.
• SKU Name: Blackburn AMTT250 Insulated Aluminum Multi-Tap Connector
