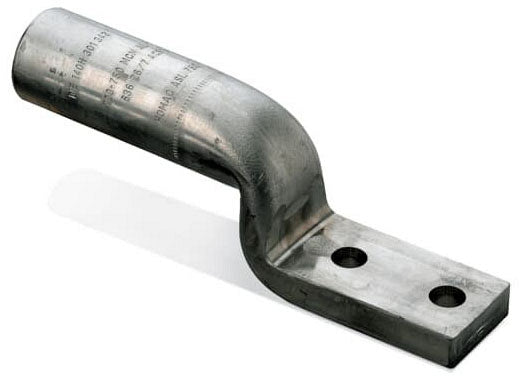

Blackburn ASL-4/0-NTN Aluminum Tin 2-Hole NEMA Stack Lug, 4/0 AWG, Tin-Plated

Overview

Blackburn ASL-4/0-NTN Aluminum Tin 2-Hole NEMA Stack Lug, 4/0 AWG, Tin-Plated

Product Specifications

• UPC: 78378669653
• UPC 12 Digit: 783786696536
• Brand: T&B Blackburn
• Manufacturer: ABB, Inc. (Thomas & Betts)
• Manufacturer Part Number: ASL-4/0-NTN
• Product Type: Stack Lug / Compression Terminal
• Description: Tin-Plated Aluminum Two-Hole NEMA Stack Lug, 4/0 Stranded AL9CU, UL Listed
• Catalog Description: Tin-plated aluminum two-hole NEMA lug, 4/0 stranded, UL listed, installs with dies TX, 71H, W660, U28ART. Barrel 1-15/16 in long x 7/8 in OD; pad 1-3/16 in wide x 3 in long x 19/64 in thick; (2) 9/16 in holes on 1-3/4 in centers; includes oxide inhibitor and white cap.
• Sub-Category: Compression Terminal
• UNSPSC: 39121409
• Material: Aluminum
• Finish: Tin Plated
• Conductor Size: 4/0 AWG
• Number of Holes: 2
• Stacking Feature: Yes
• Pad Dimensions: 1-3/16 in W x 3 in L x 19/64 in T
• Barrel Dimensions: 1-15/16 in L x 7/8 in OD
• Hole Size: 9/16 in (on 1-3/4 in centers)
• Oxide Inhibitor: Yes
• Color Cap: White
• Made in USA: Yes
• Category: Large Terminals & Connectors
• Application: Electrical terminations for industrial, commercial, and utility power connections
• Full Technical Description: Blackburn ASL-4/0-NTN Aluminum Tin 2-Hole NEMA Stack Lug; designed for 4/0 stranded AL9CU conductors; tin-plated aluminum construction; stackable with oxide inhibitor; barrel 1-15/16 in long, pad 1-3/16 in x 3 in x 19/64 in thick; UL listed; suitable for compression terminations in industrial and commercial wiring.
• Manufacturer Brand: T&B Blackburn
• SKU Name: blackburn asl-4/0-ntn aluminum tin 2-hole nema stack lug
