Overview

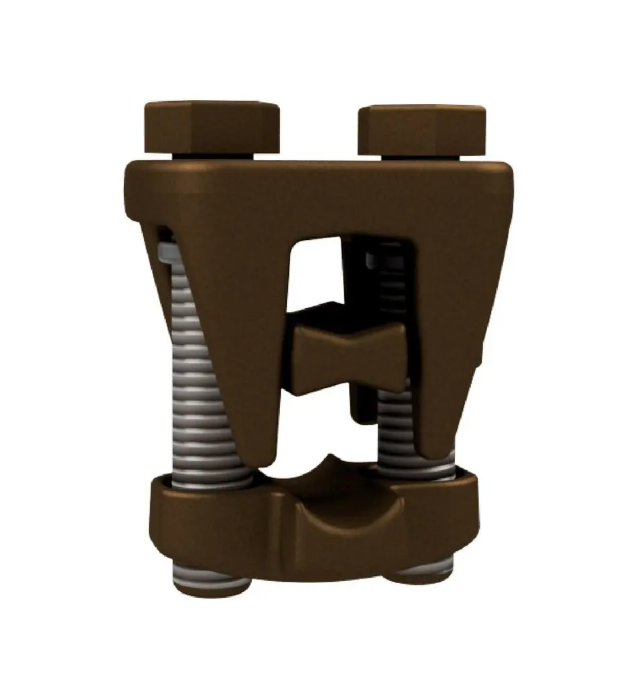

Anderson KR2 Two-Bolt Bronze Parallel Groove Connector for Copper Conductors

Product Specifications

• UPC: 096359318743
• Brand: Anderson
• Manufacturer: Anderson
• Manufacturer Part Number: KR2
• Product Type: Parallel Groove Connector
• Description: Two-bolt bronze parallel groove connector for copper-to-copper conductor connections
• Style: Two Bolt
• Material – Body: Bronze Alloy
• Material – Body Halves: Bronze Alloy
• Material – Bolt: Silicon Bronze
• Material – Bottom Member: Bronze Alloy
• Material – Hardware: Silicon Bronze
• Material – Spacer: Bronze Alloy
• Plating: None
• Bolt Head Type: Hex
• Bolt Installation Torque (Recommended): 0 ft-lbs
• Cover Available: No
• EU RoHS Indicator: Inhibitor Loaded: No
• Conductor Diameter Range: 0.26 – 0.419 in
• Conductor Diameter – Tap Maximum: 0.419 in
• Conductor Diameter – Tap Minimum: 0.162 in
• Conductor Diameter – Maximum: 0.419 in
• Conductor Diameter – Minimum: 0.26 in
• Dimensions: 1.625 in (L) x 1.063 in (W) x 1.781 in (H)
• Bolt Diameter: 0.38 in
• Height: 1.781 in
• Length: 1.625 in
• Width: 1.063 in
• Weight: 0.392 lb
• Category: Mechanical Connectors
• Application: Parallel connection of copper conductors in industrial or utility electrical systems
• Full Technical Description: Anderson KR2 Two-Bolt Bronze Parallel Groove Connector; bronze construction with two-bolt clamp; designed for secure copper-to-copper conductor connections; accommodates conductors 0.26 to 0.419 in in diameter; compact footprint 1.625 x 1.063 x 1.781 in; hex bolts for installation; no plating or cable separator; suitable for mechanical and industrial electrical applications
• Manufacturer Brand: Anderson
• SKU Name: anderson kr2 two-bolt bronze parallel groove connector
