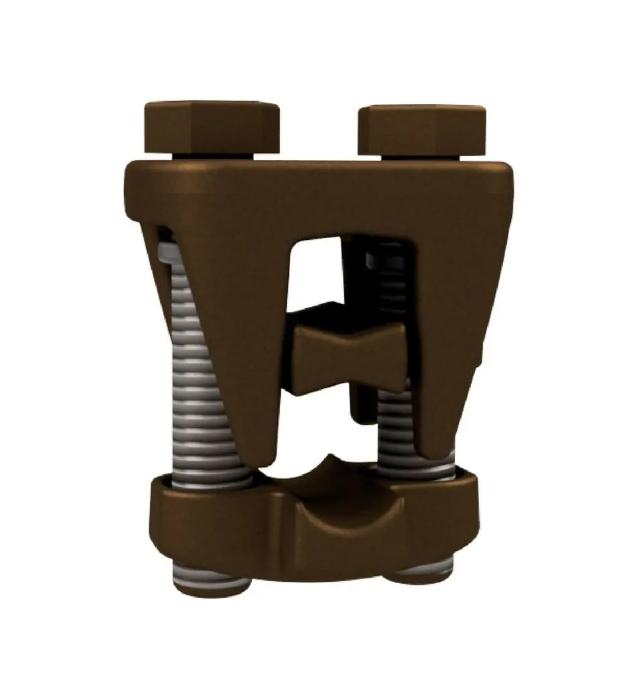

Anderson KR5 Two-Bolt Bronze Parallel Groove Connector for Copper Conductors

Overview

Anderson KR5 Two-Bolt Bronze Parallel Groove Connector for Copper Conductors

Product Specifications

• UPC: 096359318804
• Brand: Anderson
• Manufacturer: Anderson
• Manufacturer Part Number: KR5
• Product Type: Parallel Groove Connector
• Description: Two-bolt bronze parallel groove connector for copper-to-copper conductor connections
• Style: Two Bolt
• Material – Body: Bronze Alloy
• Material – Body Halves: Bronze Alloy
• Material – Bolt: Silicon Bronze
• Material – Bottom Member: Bronze Alloy
• Material – Hardware: Silicon Bronze
• Material – Spacer: Bronze Alloy
• Plating: None
• Bolt Head Type: Hex
• Bolt Installation Torque (Recommended): 0 ft-lbs
• Cover Available: No
• Inhibitor Loaded: No
• Conductor Diameter Range: 0.464 – 0.813 in
• Conductor Diameter – Tap Maximum: 0.813 in
• Conductor Diameter – Tap Minimum: 0.232 in
• Conductor Diameter – Maximum: 0.813 in
• Conductor Diameter – Minimum: 0.464 in
• Dimensions: 2.250 in (L) x 1.50 in (W) x 2.938 in (H)
• Bolt Diameter: 0.5 in
• Height: 2.938 in
• Length: 2.25 in
• Width: 1.5 in
• Weight: 0.86 lb
• Product Category: Mechanical Connectors
• Application: Parallel connection of copper conductors in industrial or utility electrical systems
• Full Technical Description: Anderson KR5 Two-Bolt Bronze Parallel Groove Connector; robust bronze alloy construction with hex bolts; designed for copper-to-copper conductor connections; accommodates conductors 0.464 – 0.813 in diameter; compact footprint 2.25 x 1.5 x 2.938 in; no plating or cover; suitable for mechanical and industrial electrical applications
• Manufacturer Brand: Anderson
• SKU Name: anderson kr5 two-bolt bronze parallel groove connector
