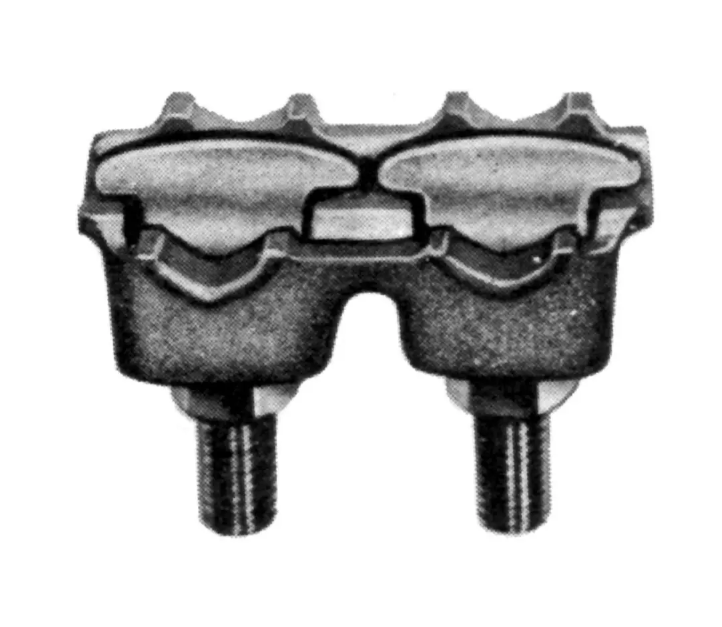

Anderson TLD89 Bronze Tap Lug Terminal for Copper Cable Connections to Flat Copper Pads

Overview

Anderson TLD89 Bronze Tap Lug Terminal for Copper Cable Connections to Flat Copper Pads

Product Specifications

• Brand: Anderson
• Manufacturer: Anderson
• Manufacturer Part Number: TLD89
• Catalog Number: TLD89
• Product Type: Tap Lug Terminal
• Description: Bronze alloy terminal for connecting one or two copper cables directly to a flat copper pad
• Material – Terminal: Bronze alloy
• Material – Clamping Hardware: Stainless steel
• Material Type: Standard
• Number of Ground Braid Lug Holes: 0
• Recommended Applications: Power or grounding applications; can be tandem-mounted side by side on NEMA 1-3/4” hole centers drilled for 1/2” bolts
• Tin Plating Option: Tin-plated terminal available for copper-to-aluminum bus bar connections with Belleville spring washer (suffix TPBW)
• Dimensions (L × W × H): 3.438 in × 3.563 in × 1.75 in
• Thickness – Mounting Pad Maximum: 0.25 in
• Weight: 1.838 lb
• Full Technical Description: Anderson TLD89 Tap Lug Terminal; made of bronze alloy with stainless steel clamping hardware; designed for direct copper cable connections to flat copper pads; suitable for power and grounding applications; tandem mounting possible on NEMA 1-3/4” hole centers; optional tin-plated version with Belleville spring washer for copper-to-aluminum bus bar connections
