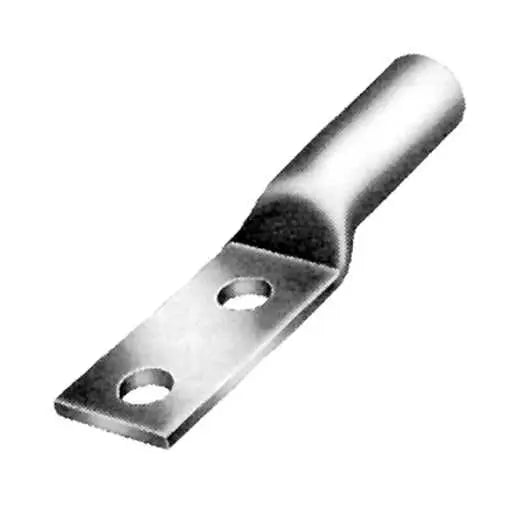

Anderson VAUL75012BN VERSAtile Aluminum Compression Terminal for 700–750 AL and ACSR Conductors

Product Specifications

• Catalog Description: Aluminum Compression Terminal for 700–750 AL, 556.5 30/7, 636 18/1, 605 24/7, 26/7, 715.5 36/1, and 750–800 Compact Conductors
• Category: Compression Connectors and Terminals
• Full Technical Description: Anderson VERSAtile Aluminum Compression Terminal; Catalog Number VAUL75012BN; Aluminum Body Material; Impact Extruded Style; Standard Material Type; 2-Hole Pad Configuration; 0.500 Inch Pad Bolt Hole Size; No Plating; Prefilled with Rubber-Compatible Inhibitor; Sealed with Color-Coded End Caps; Compatible with VERSA-CRIMP and Conventional Compression Tools; Conductor Diameter Range 0.806 Inch Minimum to 0.988 Inch Maximum; Supports Aluminum, ACSR, AAC, and ACAR Conductors; Meets ANSI C119.4 Class A Performance on Aluminum and ACSR Conductors and ANSI C119.4 Class C Performance on Copper Conductors; Dimensions 6.935 Inch Length x 1.375 Inch Width x 1.435 Inch Height; Weight 0.503 lb; Not UL Listed
• Manufacturer: Hubbell / Anderson
• Manufacturer Brand: Anderson
• Sub Category: Aluminum Compression Terminal
• UPC 12 Digit: 096359334972
• SKU Name: VAUL75012BN
