Overview

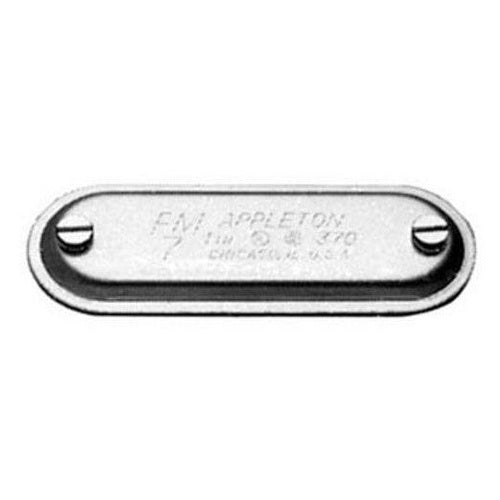

Appleton 170SA 1/2" Aluminum Conduit Body Cover

Product Specifications

• UPC: 78138160116
• Catalog Number: 170SA
• Brand Name: Appleton
• Type: Clip, Screw
• Trade Size: 1/2 Inch
• Form Type: Form 7
• Material: Natural Stamped Aluminum
• Approval: UL 514A/B, CSA C22.2
• Additional Information: Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC/CEC NEMA FB-1
• Catalog Description: FM7 WEDGE-LOK BLANK CLIP COVER WITH SCREW, HUB SIZE: 1/2 IN, FORM: 7, MOUNTING: SCREW-IN, MATERIAL: STAMPED ALUMINUM, FINISH: NATURAL ALUMINUM, STANDARD: UL 514A, UL 514B, UL FILE NUMBER E2527, CSA C22.2 NO. 18.3, CSA 065183, NEMA FB-1, FOR
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Clip Type; Natural Copper-Free Stamped Aluminum Material; UL 514A/B, CSA C22.2 Approval; 1/2 Inch Trade Size; Form 7 Form Type; FM7[TM], Wedge-LOK[TM] Brand; Enclosure Rating Class I Div 2, NEMA 3R; Operating Temperature Rating -65 to 302 Deg F; Includes Stainless Steel Screw; Used on Imc/Rigid Conduit; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body Cover
• Unspsc: 39131708
• UPC 12 Digit: 781381601160
• SKU Name: app 170sa
