Overview

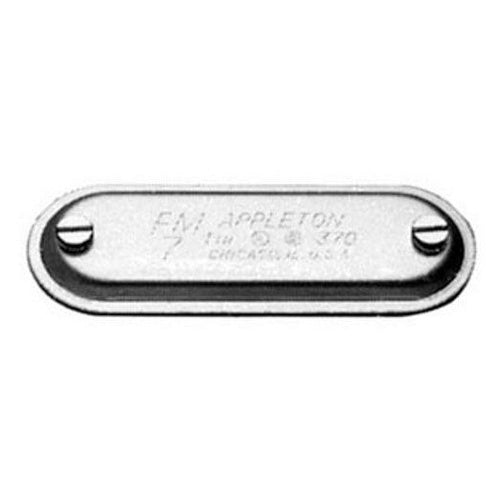

Appleton 470SA 1-1/4" Aluminum Conduit Body Cover

Product Specifications

• UPC: 78138160119
• Catalog Number: 470SA
• Brand Name: Unilet[R], FM7[TM]
• Type: Blank, Screw
• Trade Size: 1-1/4 Inch
• Form Type: Form 7
• Material: Natural Finished Stamped Copper Free Aluminum
• Approval: UL 514A/514B, CSA C22.2
• Additional Information: Application Serve as Pulling Fitting, Make Bend in Conduit System, Provide Opening for Splicing, Connect and Change Direction of Conduit Run, Allow Connection for Branch Run, Permit Access to Conductor for Maintenance
• Catalog Description: FM7 WEDGE-LOK BLANK CLIP COVER WITH SCREW, HUB SIZE: 1-1/4 IN, FORM: 7, MOUNTING: SCREW-IN, MATERIAL: STAMPED ALUMINUM, FINISH: NATURAL ALUMINUM, STANDARD: UL 514A, UL 514B, UL FILE NUMBER E2527, CSA C22.2 NO. 18.3, CSA 065183, NEMA FB-1, F
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Clip Type; Natural Copper-Free Stamped Aluminum Material; UL 514A/B, CSA C22.2 Approval; 1-1/4 Inch Trade Size; Form 7 Form Type; FM7[TM], Wedge-LOK[TM] Brand; Enclosure Rating Class I Div 2, NEMA 3R; Operating Temperature Rating -65 to 302 Deg F; Includes Stainless Steel Screw; Used on Imc/Rigid Conduit; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body Cover
• Unspsc: 39131708
• UPC 12 Digit: 781381601191
• SKU Name: app 470sa

Resources

• Manufacturer Spec Sheet
