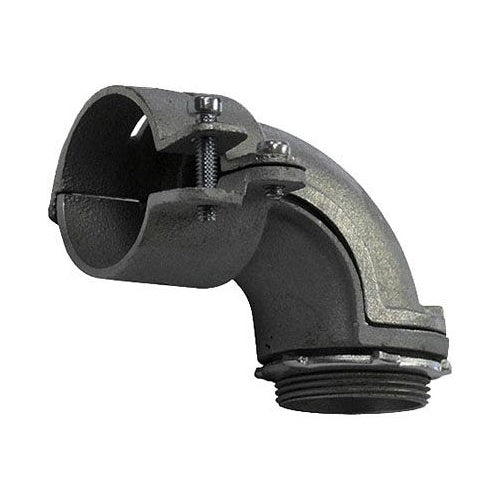

Appleton 7388 3" 90 Deg Box Connector

Overview

Appleton 7388 3" 90 Deg Box Connector

Product Specifications

• UPC: 78138177365
• Approval: UL 514B, CSA C22.2
• Additional Information: Used On Armored Cable/Flexible Metal Conduit; Applicable Standard NEMA FB-1
• Catalog Number: 7388
• Type: 90 Deg
• Trade Size: 3 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Metal Conduit
• Cord Size: 3.16 to 3.5 Inch
• Throat Type: Non-Insulated
• Material: Electro Zinc Plated Malleable Iron
• Catalog Description: ARMORED CABLE/FLEXIBLE CONDUIT CONNECTOR, TYPE 90 DEG, TRADE SIZE 3 INCH, CABLE OPENING SINGLE, CABLE/CONDUIT TYPE ARMORED CABLE/FLEXIBLE METAL CONDUIT, CORD SIZE 3.16 TO 3.5 INCH, THROAT TYPE NON-INSULATED, MATERIAL ZINC ELECTROPLATED MALLEABLE IRON, APPROVAL UL 514B, CSA C22.2, APPLICABLE STANDARD NEMA FB-1, THREAD TYPE 1.06 INCH MALE, USED ON ARMORED CABLE/FLEXIBLE METAL CONDUIT, INCLUDES LOCKNUT
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Degree Type; Zinc Electroplated Malleable Iron Material; UL 514B, CSA C22.2 Approval; 3 Inch Trade Size; 3.16 to 3.5 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Metal Conduit; Single Cable Opening; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 781381773652
• SKU Name: app 7388
