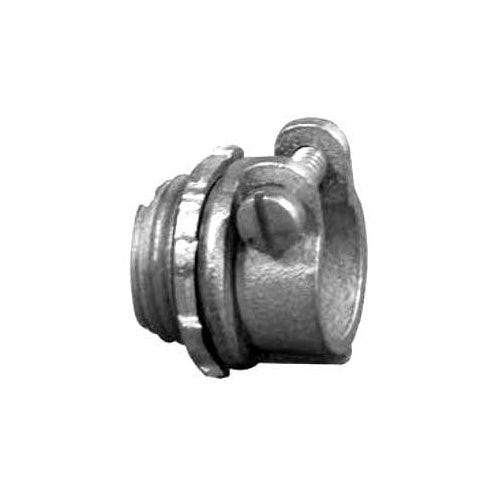

Appleton 7481V 1/2" Malleable Squeeze Flex/Bx Connector

Overview

Appleton 7481V 1/2" Malleable Squeeze Flex/Bx Connector

Product Specifications

• UPC: 78138177375
• Throat Type: Non-Insulated
• Material: Zinc Electroplated Malleable Iron
• Approval: UL, CSA
• Additional Information: Includes Locknut; Application Commercial and Industrial; Applicable Standard NEC/CEC, NEMA FB-1
• Catalog Number: 7481V
• Type: Straight
• Trade Size: 1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Metal Conduit
• Cord Size: 0.78 to 0.94 Inch
• Length: 1.44 Inch
• Installation: Screw
• Catalog Description: STRAIGHT CONDUIT CONNECTOR, SIZE: 1/2 IN, CONNECTION: ARMORED CABLE X FLEXIBLE METAL CONDUIT, CONDUCTOR RANGE: 0.59 - 0.94 IN, MATERIAL: MALLEABLE IRON, FINISH: ZINC ELECTROPLATE, LENGTH: 1.5 IN, WIDTH: 2 IN, THREAD LENGTH: 0.44 IN, STANDAR
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Zinc Electroplated Malleable Iron Material; 1.32 Inch; UL 514B, CSA C22.2 Approval; 1/2 Inch Trade Size; 0.75 to 0.94 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Metal Conduit; Single Cable Opening; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 781381773751
• SKU Name: app 7481v
