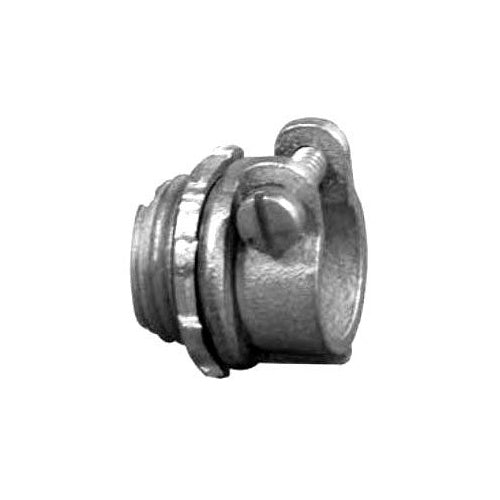

Appleton 7482VI 3/4" .906-1.125 Insulated Connector

Overview

Appleton 7482VI 3/4" .906-1.125 Insulated Connector

Product Specifications

• UPC: 78138140412
• Approval: UL 514B, CSA C22.2
• Catalog Number: 7482VI
• Type: Straight
• Trade Size: 3/4 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Metal Conduit
• Cord Size: 0.81 to 1.12 Inch
• Throat Type: Insulated
• Material: Zinc Electroplated Malleable Iron
• Catalog Description: STRAIGHT CONDUIT CONNECTOR, SIZE: 3/4 IN, CONNECTION: ARMORED CABLE X FLEXIBLE METAL CONDUIT, CONDUCTOR RANGE: 0.81 - 1.12 IN, MATERIAL: MALLEABLE IRON, FINISH: ZINC ELECTROPLATE, LENGTH: 1.69 IN, WIDTH: 2 IN, THREAD LENGTH: 0.44 IN, STAND
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Zinc Electroplated Malleable Iron Material; 2.72 Inch; UL 514B, CSA C22.2 Approval; 3/4 Inch Trade Size; 0.91 to 1.1 Inch Cord Size; Insulated Throat Type; Armored Cable/Flexible Metal Conduit; Single Cable Opening; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 781381404129
• SKU Name: app 7482vi

Resources

• Manufacturer Spec Sheet
