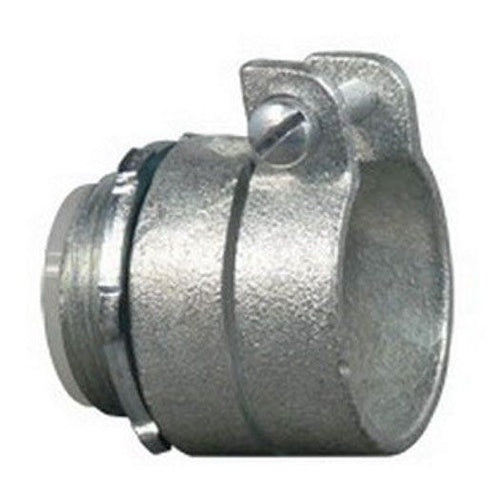

Appleton 7483I 1" 1.031-1.380 Insulated Connector

Overview

Appleton 7483I 1" 1.031-1.380 Insulated Connector

Product Specifications

• UPC: 78138140413
• Throat Type: Insulated
• Material: Electro Zinc Plated Malleable Iron
• Approval: UL 514B, CSA C22.2
• Additional Information: Used On Armored Cable/Flexible Metal Conduit; Applicable Standard NEMA FB-1
• Catalog Number: 7483I
• Type: Straight
• Trade Size: 1 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Metal Conduit
• Cord Size: 1.03 to 1.38 Inch
• Length: 1.63 Inch
• Installation: (1) Screw
• Catalog Description: STRAIGHT CONDUIT CONNECTOR, SIZE: 1 IN, CONDUCTOR RANGE: 1.03 - 1.38 IN, MATERIAL: MALLEABLE IRON, FINISH: ZINC ELECTROPLATE, LENGTH: 1.13 IN, WIDTH: 1.97 IN, THREAD LENGTH: 0.5 IN, STANDARD: UL 514B, UL LISTED: E14814, CSA STANDARD: C22.2
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Zinc Electroplated Malleable Iron Material; 1.63 Inch; (1) Screw Installation; UL 514B, CSA C22.2 Approval; 1 Inch Trade Size; 1.03 to 1.38 Inch Cord Size; Insulated Throat Type; Armored Cable/Flexible Metal Conduit; Single Cable Opening; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 781381404136
• SKU Name: app 7483i
