Overview

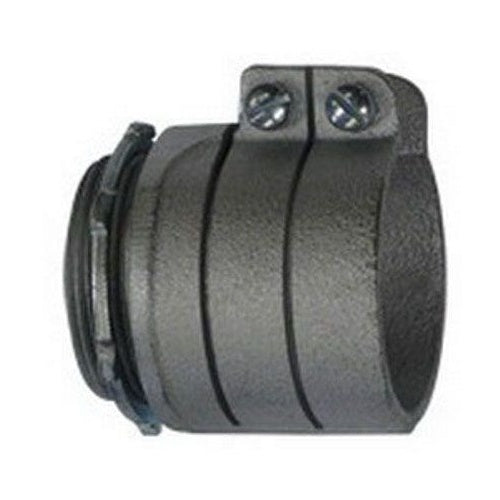

Appleton 7485 1-1/2" Malleable Squeeze Flex Connector

Product Specifications

• UPC: 78138177395
• Throat Type: Non-Insulated
• Material: Zinc Electroplated Malleable Iron
• Approval: UL 514B, CSA C22.2
• Additional Information: Includes Locknut; Application Commercial, Industrial; Applicable Standard NEC/CEC, NEMA FB-1
• Catalog Number: 7485
• Type: Straight
• Trade Size: 1 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable, Flexible Metal Conduit
• Cord Size: 1.63 to 1.88 Inch
• Length: 2.57 Inch
• Installation: (2) Screw
• Catalog Description: STRAIGHT CONDUIT CONNECTOR, SIZE: 1-1/2 IN, CONDUCTOR RANGE: 1.63 - 1.95 IN, MATERIAL: MALLEABLE IRON, FINISH: ZINC ELECTROPLATE, LENGTH: 1.84 IN, WIDTH: 2.69 IN, THREAD LENGTH: 0.56 IN, STANDARD: UL 514B, UL LISTED: E14814, CSA STANDARD: C2
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Zinc Electroplated Malleable Iron Material; 2.4 Inch; (2) Screw Installation; UL 514B, CSA C22.2 Approval; 1-1/2 Inch Trade Size; 1.63 to 1.95 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Metal Conduit; Single Cable Opening; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 781381773959
• SKU Name: app 7485
