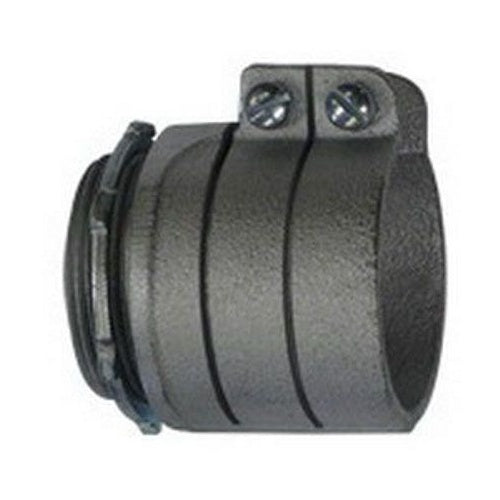

Appleton 7486 2" Malleable Squeeze Flex Connector

Product Specifications

• UPC: 78138177400
• Throat Type: Non-Insulated
• Material: Electro Zinc Plated Malleable Iron
• Approval: UL 514B, CSA C22.2
• Additional Information: Used On Armored Cable/Flexible Metal Conduit; Applicable Standard NEMA FB-1
• Catalog Number: 7486
• Type: Straight
• Trade Size: 2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Metal Conduit
• Cord Size: 2.16 to 2.45 Inch
• Length: 2.75 Inch
• Installation: (2) Screw
• Catalog Description: STRAIGHT CONDUIT CONNECTOR, SIZE: 2 IN, CONDUCTOR RANGE: 2.16 - 2.45 IN, MATERIAL: MALLEABLE IRON, FINISH: ZINC ELECTROPLATE, LENGTH: 2 IN, WIDTH: 3.31 IN, THREAD LENGTH: 3/4 IN, STANDARD: UL 514B, UL LISTED: E14814, CSA STANDARD: C22.2 NO.
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Zinc Electroplated Malleable Iron Material; 2.75 Inch; (2) Screw Installation; UL 514B, CSA C22.2 Approval; 2 Inch Trade Size; 2.16 to 2.45 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Metal Conduit; Single Cable Opening; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 781381774000
• SKU Name: app 7486
