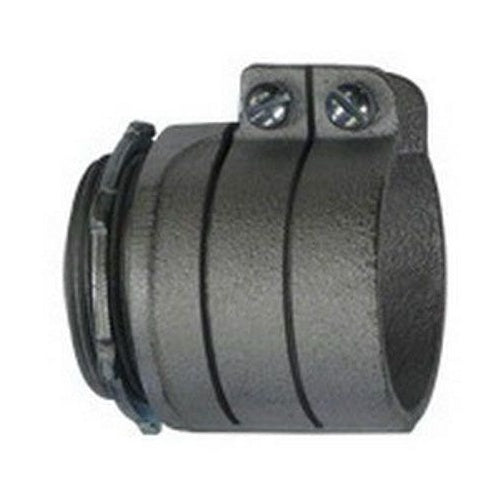

Appleton 7489 3-1/2" Malleable Squeeze Flex Connector

Overview

Appleton 7489 3-1/2" Malleable Squeeze Flex Connector

Product Specifications

• UPC: 78138125786
• Throat Type: Non-Insulated
• Material: Electro Zinc Plated Malleable Iron
• Approval: UL 514B, CSA C22.2
• Additional Information: Used On Armored Cable/Flexible Metal Conduit; Applicable Standard NEMA FB-1
• Catalog Number: 7489
• Type: Straight
• Trade Size: 3-1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Metal Conduit
• Cord Size: 3.75 to 4.13 Inch
• Length: 3.44 Inch
• Installation: (2) Screw
• Catalog Description: STRAIGHT CONDUIT CONNECTOR, SIZE: 3-1/2 IN, CONDUCTOR RANGE: 3-3/4 - 4.13 IN, MATERIAL: MALLEABLE IRON, FINISH: ZINC ELECTROPLATE, LENGTH: 2.44 IN, WIDTH: 5.13 IN, THREAD LENGTH: 1 IN, BUSHED HOLE DIAMETER: 3.5 IN, STANDARD: UL 514B, UL LIST
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Zinc Electroplated Malleable Iron Material; 3.44 Inch; (2) Screw Installation; UL 514B, CSA C22.2 Approval; 3-1/2 Inch Trade Size; 3.75 to 4.13 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Metal Conduit; Single Cable Opening; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 781381257862
• SKU Name: app 7489
