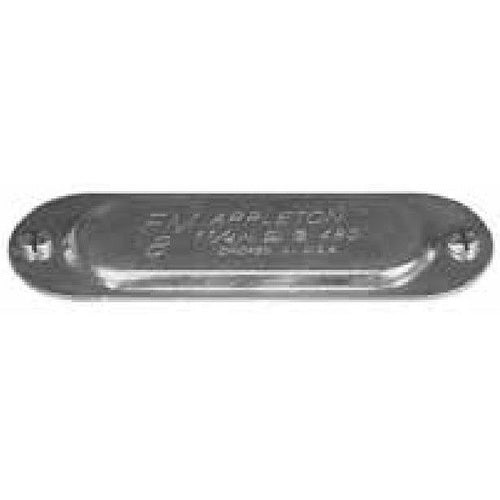

Appleton 980 4" Steel Conduit Body Cover

Overview

Appleton 980 4" Steel Conduit Body Cover

Product Specifications

• UPC: 78138174469
• Catalog Number: 980
• Brand Name: Unilet[R], FM8[TM]
• Type: Blank, Screw
• Trade Size: 3-1/2 Inch
• Form Type: Form 8
• Material: Zinc Electroplated Steel
• Approval: UL 514A/514B, CSA C22.2
• Additional Information: Application Serve as Pulling Fitting, Make Bend in Conduit System, Provide Opening for Splicing, Connect and Change Direction of Conduit Run, Allow Connection for Branch Run, Permit Access to Conductor for Maintenance
• Catalog Description: IMC/RIGID CONDUIT BODY COVER, TYPE BLANK, SCREW, TRADE SIZE 3-1/2 INCH, 4 INCH, FORM TYPE FORM 8, MATERIAL ZINC ELECTROPLATED STEEL, APPROVAL UL 514A, CSA C22.2, APPLICABLE STANDARD NEMA FB-1, APPLICATION WET LOCATION, USED ON IMC/RIGID CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Blank Type; Zinc Electroplated Stamped Steel Material; UL 514A/B, CSA C22.2 Approval; 3-1/2 Inch, 4 Inch Trade Size; Form 8 Form Type; FM8[TM] Brand; Enclosure Rating Class I Div 2, NEMA 3R; Used on Imc/Rigid Conduit; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body Cover
• Unspsc: 39131708
• UPC 12 Digit: 781381744690
• SKU Name: app 980

Resources

• Manufacturer Spec Sheet
