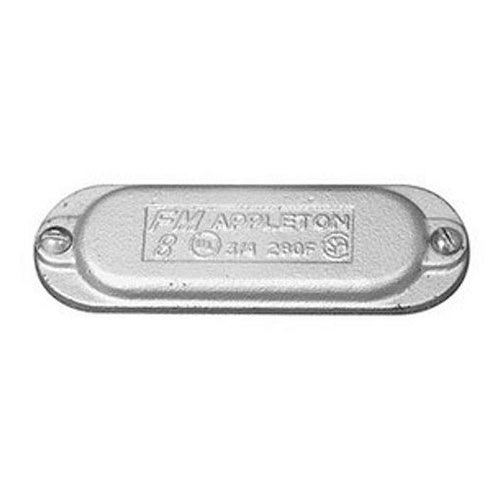

Appleton 980F 4" Iron Conduit Body Cover

Overview

Appleton 980F 4" Iron Conduit Body Cover

Product Specifications

• UPC: 78138174461
• Catalog Number: 980F
• Brand Name: FM8[T], Appleton.
• Trade Size: 3-1/2 INCH / 4 INCH
• Form Type: FORM 8
• Material: ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED GRAYLOY[T] IRON
• Installation: BLANK, SCREW
• Additional Information: SCREW MATERIAL STAINLESS STEEL
• Catalog Description: IMC/RIGID CONDUIT BODY COVER AND GASKET, TYPE BLANK, SCREW, TRADE SIZE 3-1/2 INCH, 4 INCH, FORM TYPE FORM 8, MATERIAL CAST GRAYLOY IRON, APPROVAL UL 514A, CSA C22.2, APPLICABLE STANDARD NEMA FB-1, APPLICATION WET LOCATION, USED ON IMC/RIGID CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Blank Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Cast Grayloy-Iron Material; UL 514A/B, CSA C22.2 Approval; 3-1/2 Inch, 4 Inch Trade Size; Form 8 Form Type; FM8[TM] Brand; Enclosure Rating Class I Div 2, NEMA 3R; Used on Imc/Rigid Conduit; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body Cover
• Unspsc: 39131708
• UPC 12 Digit: 781381744614
• SKU Name: app 980f

Resources

• Manufacturer Spec Sheet
