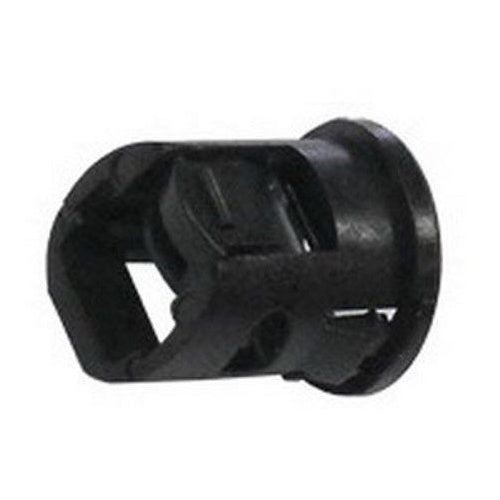

Appleton APPA1 1/2" Plstc Nmc Connector

Overview

Appleton APPA1 1/2" Plstc Nmc Connector

Product Specifications

• UPC: 78138128101
• Additional Information: Applicable Standard NEMA FB-1; Overall Dimension 1.09 Inch W x 1 Inch H
• Catalog Number: A1
• Installation: CAM Locking, Positive Stop Locking
• Trade Size: 1/2 Inch
• Cable Type: Non-Metallic Sheathed Cable
• Cable Size: (2) 14 AWG, (2) 12 AWG, (2) 10 AWG
• Throat Type: Non-Insulated
• Material: Thermoplastic
• Approval: UL 514B
• Catalog Description: CABLE CONNECTOR WITH CAM LOCK, SIZE: 1/2 IN, CONDUCTOR RANGE: 14 - 2 AWG, 12 - 2 AWG AND 10 - 2 AWG, MATERIAL: THERMOPLASTIC, LENGTH: 1.09 IN, WIDTH: 1 IN, THREAD LENGTH: 0.13 IN, STANDARD: UL 514B, UL LISTED: E23237, NEMA FB-1, FOR USED TO GR
• Category: Non-Metallic Cable Cable Fittings
• Full Technical Description: Thermoplastic Material; Cam/Positive Stop Locking Installation; Non-Metallic Sheathed Cable Cable Type; (2) 14 AWG, (2) 12 AWG, (2) 10 AWG Cable Size; UL 514B Approval; 1/2 Inch Trade Size; Overall Dimension 1 Inch Diameter X 1.09 Inch Length; Thread Length 0.13 Inch; Application Commercial/Industrial; Applicable Standard NEC, NEMA FB-1
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Nonmetallic Sheathed Cable Connector
• Unspsc: 39121419
• UPC 12 Digit: 781381281010
• SKU Name: app a1
