Appleton AAC-75 Ceiling Fixture

Overview

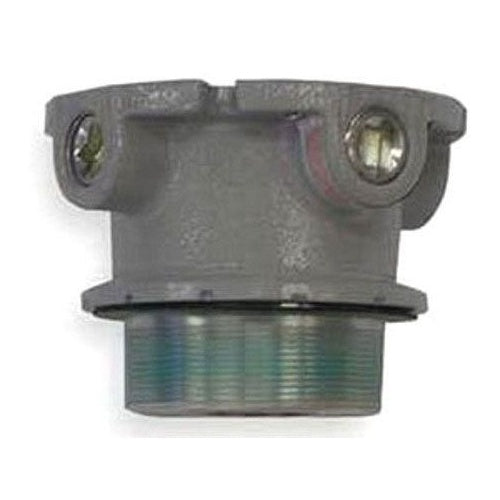

Appleton AAC-75 Ceiling Fixture

Product Specifications

• UPC: 78138110070
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL 844/1598, CSA C22.2
• Additional Information: Used On A51 Series Incandescent Luminaire
• Catalog Number: AAC-75
• Type: Ceiling
• Constructional Feature: Explosionproof, Wet Location
• Number Of Hubs: 4
• Number Of Plugs: 3
• Hub Size: 3/4 Inch
• Material: Malleable Iron
• Finish: Electrostatically Applied Epoxy Powder Coated
• Catalog Description: APPLETON A-51 MOUNTING HOOD, SIZE: 3/4 IN HUB, MATERIAL: MALLEABLE IRON, LAMP TYPE: INCANDESCENT, STANDARD: CLASS I, DIVISION 1 AND 2, GROUPS C, D, CLASS II, DIVISION 1 AND 2, GROUPS E, F, G, CLASS III, FOR USE WITH UNILETS THREADED METAL CONDUIT
• Category: Lighting Accessories
• Full Technical Description: Malleable Iron Material; Electrostatically Applied Epoxy Powder Coated Finish; Incandescent Luminaire Used on; 3/4 Inch Hub Size; 4 Hub(S); Ceiling Mounting; Constructional Feature Explosionproof; Number of Plugs 3; Application Hazardous Location
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Vaporproof Incandescent Fixture Mounting Hood
• Unspsc: 39121308
• UPC 12 Digit: 781381100700
• SKU Name: app aac75

Resources

• Manufacturer Spec Sheet
