Overview

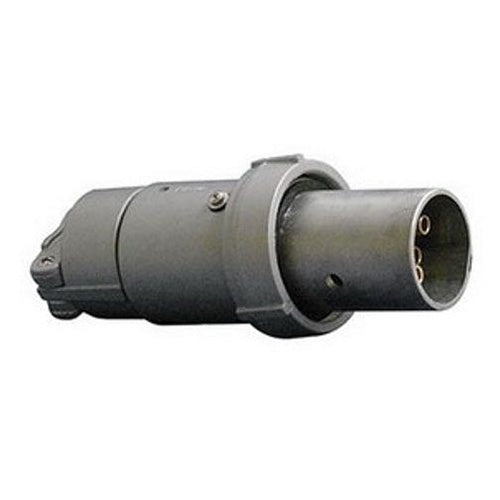

Appleton ACP1023CD 2W-3P Plug

Product Specifications

• UPC: 78138144013
• Material: Copper Free Aluminum
• Mating Receptacle: ADR
• Enclosure: NEMA 3/3R/4/4X
• Approval: UL1682/1686/50E, CSA C22.2
• Catalog Number: ACP1023CD
• Brand Name: Powertite[R]
• Voltage Rating: 600 VAC, 250 VDC
• Current Rating: 100 Ampere
• Number Of Poles: 3
• Number Of Wires: 2
• Minimum Cable Outer Diameter: 0.875 Inch
• Maximum Cable Outer Diameter: 1.906 Inch
• Catalog Description: POWERTITE GROUNDING STYLE 2 CLAMPING RING PLUG, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, WIRE SIZE: 4 - 1 AWG (BUILDING), 4 - 2 AWG (EXTRA FLEX), AMPERAGE RATING: 100 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 1 PH, MAT
• Category: Pin & Sleeve Devices
• Full Technical Description: Compressor, Clamping Ring, Motor Generator Unit, Pump, Positive Polarization, Welding Type; Epoxy Powder Coated Copper-Free Aluminum Material; 0.875 Inch min. Cable Outer Diameter; 1.906 Inch Max. Cable Outer Diameter; 2 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 100 Amp Current Rating; 3 Pole(S); Weatherproof; Shell, Extra Pole, 2 Grounding Style; POWERTITE[TM] Brand; Wire Recess Diameter 0.391 Inch; Contact Material Brass; Finish Fiberglass Reinforced Polyester (Insulating Block); Enclosure Rating NEMA 3/4/4X; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 781381440134
• SKU Name: app acp1023cd
