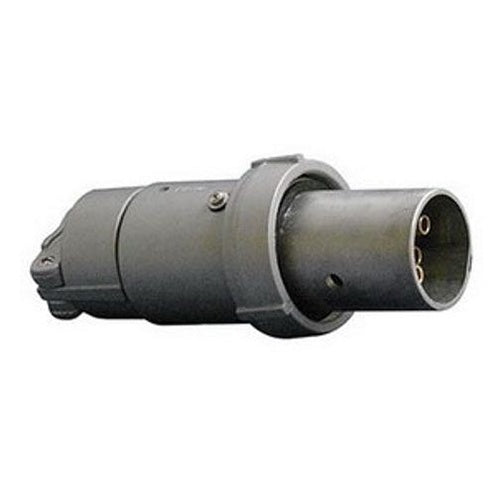

Appleton ACP3022BC 2W-2P Plug

Overview

Appleton ACP3022BC 2W-2P Plug

Product Specifications

• UPC: 78138145676
• Grounding Style: 1, Shell
• Minimum Cable Outer Diameter: 0.39 Inch
• Maximum Cable Outer Diameter: 1.375 Inch
• Material: Epoxy Powder Coated Copper Free Aluminum
• Approval: UL 1682/1689/50E, CSA C22.2
• Additional Information: Contact Material Brass; Application Compressor, Generator Unit, Pump, Shipping Docks, Shipping Ports, Welding
• Catalog Number: ACP3022BC
• Brand Name: Powertite[R]
• Type: Compressor, Motor Generator Unit, Polarized, Pump, Welding, Clamping Ring
• Constructional Feature: Weatherproof
• Voltage Rating: 600 VAC 1-Phase at 50 to 400 Hz, 250 VDC
• Current Rating: 30 Ampere
• Number Of Poles: 2
• Number Of Wires: 2
• Catalog Description: POWERTITE GROUNDING STYLE 1 METALLIC CLAMPING RING PLUG, NUMBER OF POLES: 2, NUMBER OF WIRES: 2, WIRE SIZE: 10 - 6 AWG (BUILDING), 10 - 8 AWG (EXTRA FLEX), AMPERAGE RATING: 30 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE:
• Category: Pin & Sleeve Devices
• Full Technical Description: Compressor, Clamping Ring, Motor Generator Unit, Pump, Positive Polarization, Welding Type; Epoxy Powder Coated Copper-Free Aluminum Material; 0.5 Inch min. Cable Outer Diameter; 1.125 Inch Max. Cable Outer Diameter; 2 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 30 Amp Current Rating; 2 Pole(S); Weatherproof; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Recess Diameter 0.281 Inch; Contact Material Brass; Finish Fiberglass Reinforced Polyester (Insulating Block); Enclosure Rating NEMA 3/4/4X; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 781381456760
• SKU Name: app acp3022bc
