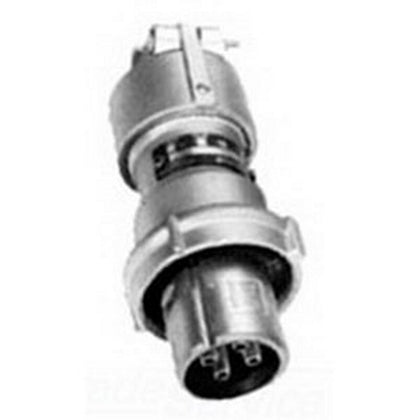

Appleton ACP3022C Powertite Grounding Style 1 Metallic Clamping Ring Plug, 2-Pole, 2-Wire, 30A, 600VAC/250VDC

Product Specifications

• Brand: Appleton®
• Manufacturer: Appleton
• Manufacturer Part Number: ACP3022C
• Product Type: Metallic Clamping Ring Plug
• Series: ACP
• Description: Powertite Grounding Style 1 Plug with 2 poles and 2 wires
• Amperage Rating: 30 A
• Voltage Rating: 600 VAC / 250 VDC
• NEMA Rating: 3/3R/4/4X
• Number of Poles: 2
• Number of Wires: 2
• Wire Size: 10–6 AWG (Building), 10–8 AWG (Extra Flex)
• Frequency Rating: 50–400 Hz
• Material – Shell: Copper-free aluminum
• Color/Finish: Metallic / Natural
• Temperature Rating: -40 to 225 °F
• Terminal Type: Pressure Wire
• Phase: 1-Phase
• Application: Supplies power to portable or fixed electrical equipment; ideal for grounding
• Key Features: Shell grounding style 1
• Insulating blocks provide maximum dielectric and mechanical strength
• Glass-filled polyester insulating blocks with natural finish
• 9/32 in diameter wire recess
• NEMA 4X rated when clamping ring fully tightened
• Locking screw prevents cable collar from backing off
• Controlled length contacts ensure ground makes first and breaks last
• Contacts exert constant pressure along entire surface for electrical continuity
• Neoprene bushing prevents water ingress, resistant to hydrocarbons, self-extinguishing
• Dimensions (L × W): 6 in × 3.13 in
• Country of Origin: Mexico
• Weight: Not specified
• Catalog Description: Appleton ACP3022C Powertite metallic clamping ring plug; 2-pole, 2-wire, 30A, 600VAC/250VDC, with grounding features, NEMA 3/3R/4/4X rated, ideal for industrial grounding and electrical connections
• Full Technical Description: Appleton ACP3022C Powertite Grounding Style 1 Metallic Clamping Ring Plug; designed for 2-pole, 2-wire applications; rated 30A, 600VAC/250VDC; NEMA 3/3R/4/4X; copper-free aluminum body; glass-filled polyester insulating blocks; controlled length contacts; neoprene bushing for water and chemical resistance; locking screw prevents accidental collar loosening; ensures ground makes first and breaks last for safety.
• SKU Name: appleton acp3022c powertite grounding style 1 metallic clamping ring plug
