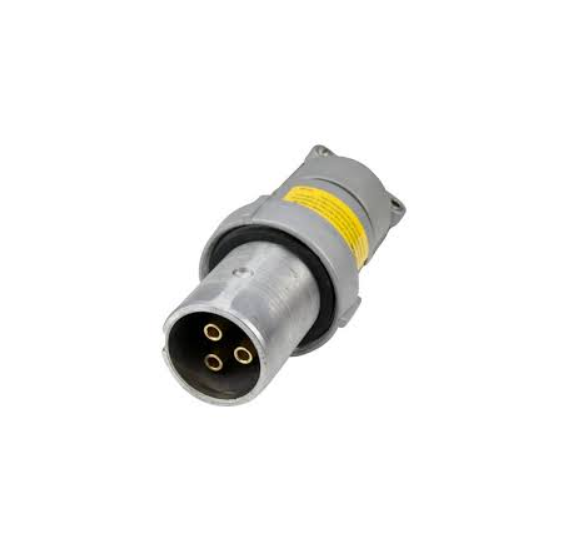

Appleton ACP3033B Powertite Heavy-Duty 3-Pole, 3-Wire Pin and Sleeve Plug, 30A, 600VAC/250VDC, Weatherproof

Overview

Appleton ACP3033B Powertite Heavy-Duty 3-Pole, 3-Wire Pin and Sleeve Plug, 30A, 600VAC/250VDC, Weatherproof

Product Specifications

• Brand: Appleton®
• Manufacturer: Emerson Electric
• Manufacturer Part Number: ACP3033B
• Product Type: Pin and Sleeve Plug
• Series: Powertite
• Description: Heavy-duty 3-pole, 3-wire pin and sleeve plug with grounding style 1
• Amperage Rating: 30 A
• Voltage Rating: Up to 600 VAC (50-400 Hz) / 250 VDC
• NEMA Rating: 3 / 3R / 4 / 4X (weatherproof, watertight)
• Number of Poles: 3
• Number of Wires: 3
• Wire Size / Cable Diameter: Accepts cables 0.395" – 1.375"
• Material – Shell: Epoxy Powder-Coated, Copper-Free Aluminum
• Color/Finish: Metallic
• Temperature Rating: Not specified
• Terminal Type: Pin and Sleeve
• Phase: 1-Phase Grounding
• Application: Industrial, commercial, and marine environments; weatherproof power connections
• Catalog Description: Appleton ACP3033B 30A Powertite 3-pole, 3-wire pin and sleeve plug; heavy-duty, NEMA 3/3R/4/4X, epoxy powder-coated copper-free aluminum with metallic clamping ring; designed for industrial, commercial, and marine use
• Full Technical Description: Appleton ACP3033B Powertite 3-Pole, 3-Wire Pin and Sleeve Plug; 30 Amp, 600VAC/250VDC; grounding style 1; epoxy powder-coated copper-free aluminum housing with metallic clamping ring; NEMA 3, 3R, 4, 4X rated for weatherproof and watertight performance; cable accommodation 0.395" to 1.375"; ideal for industrial, commercial, and marine demanding applications
• SKU Name: appleton acp3033b powertite 3-pole 3-wire pin and sleeve plug
