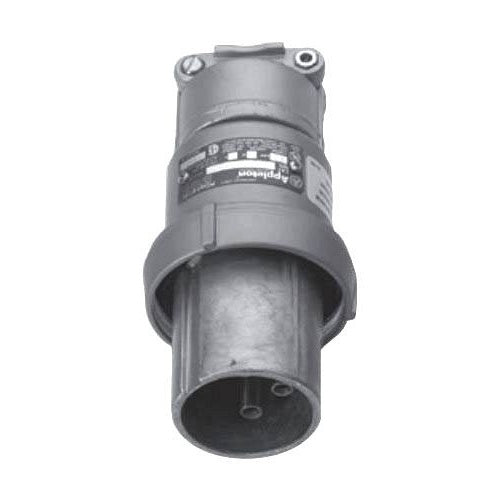

Appleton ACP3033BCRS 30A 3W3P Plug

Product Specifications

• UPC: 78138171046
• Grounding Style: 1, SHELL
• Minimum Cable Outer Diameter: 0.39 INCH
• Maximum Cable Outer Diameter: 1.375 INCH
• Material: EPOXY POWDER COATED COPPER FREE ALUMINUM
• Additional Information: APPLICATION COMPRESSOR, MOTOR GENERATOR UNIT, PUMP, SHIPPING DOCKS, SHIPPING PORTS, WELDING; CONTACT MATERIAL COPPER
• Catalog Number: ACP3033BCRS
• Brand Name: Powertite[R]
• Type: POLARIZED, REVERSE SERVICE, WITH CLAMPING RING
• Constructional Feature: WEATHER PROOF
• Voltage Rating: 600 VAC 3 PHASE AT 50 TO 400 HZ, 250 VDC
• Current Rating: 30 AMPERE
• Number Of Poles: 3
• Number Of Wires: 3
• Catalog Description: POWERTITE GROUNDING STYLE 1 METALLIC CLAMPING RING PLUG, NUMBER OF POLES: 3, NUMBER OF WIRES: 3, WIRE SIZE: 10 - 6 AWG (BUILDING), 10 - 8 AWG (EXTRA FLEX), AMPERAGE RATING: 30 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHAS
• Category: Pin & Sleeve Devices
• Full Technical Description: Compressor, Clamping Ring, Motor Generator Unit, Pump, Positive Polarization, Reverse Service, Welding Type; Epoxy Powder Coated Copper-Free Aluminum Material; 0.5 Inch min. Cable Outer Diameter; 1.125 Inch Max. Cable Outer Diameter; 3 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 30 Amp Current Rating; 3 Pole(S); Weatherproof; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Recess Diameter 0.281 Inch; Contact Material Brass; Finish Fiberglass Reinforced Polyester (Insulating Block); Enclosure Rating NEMA 3/4/4X; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 781381710466
• SKU Name: app acp3033bcrs
