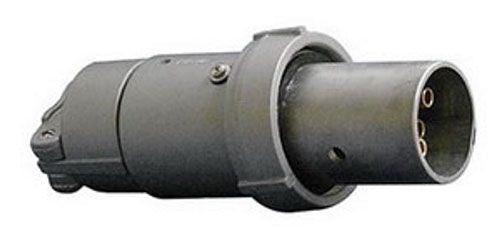

Appleton ACP3034B Powertite Heavy-Duty 4-Pole, 3-Wire Pin and Sleeve Plug, 30A, Industrial/Commercial, Weatherproof

Product Specifications

• Brand: Appleton®
• Manufacturer: Emerson Electric
• Manufacturer Part Number: ACP3034B
• Product Type: Pin and Sleeve Plug
• Series: Powertite
• Description: Heavy-duty 4-pole, 3-wire pin and sleeve plug
• Amperage Rating: 30 A
• Number of Poles: 4
• Number of Wires: 3
• Wire Configuration: 3W4P
• Material – Shell: Epoxy Powder-Coated, Copper-Free Aluminum
• Color/Finish: Metallic
• Environmental Rating: Weatherproof, corrosion-resistant, NEMA 4X when clamping ring fully tightened
• Voltage Rating: 600 V AC / 250 V DC
• Cable Range: 0.5 in to 1.125 in outer diameter
• Grounding: Shell and extra pole (Style 2)
• Safety Features: Deeply recessed contacts in arc-snuffing chamber; ground contact makes first and breaks last
• Mechanical Features: Locking screw and slot prevent plug cable collar from vibrating loose
• Application: Industrial, commercial, and harsh environment power connections; portable or fixed electrical equipment
• Catalog Description: Appleton ACP3034B 30A Powertite 4-pole, 3-wire pin and sleeve plug; epoxy powder-coated copper-free aluminum; NEMA 4X rated for industrial and corrosive environments
• Full Technical Description: Appleton ACP3034B Powertite 4-Pole, 3-Wire Pin and Sleeve Plug; 30 Amp, heavy-duty industrial-grade; epoxy powder-coated copper-free aluminum housing; designed for harsh, wet, and corrosive environments; NEMA 4X when fully tightened; recessed contacts with arc-snuffing chamber; shell and extra pole grounding; locking screw prevents accidental cable release
