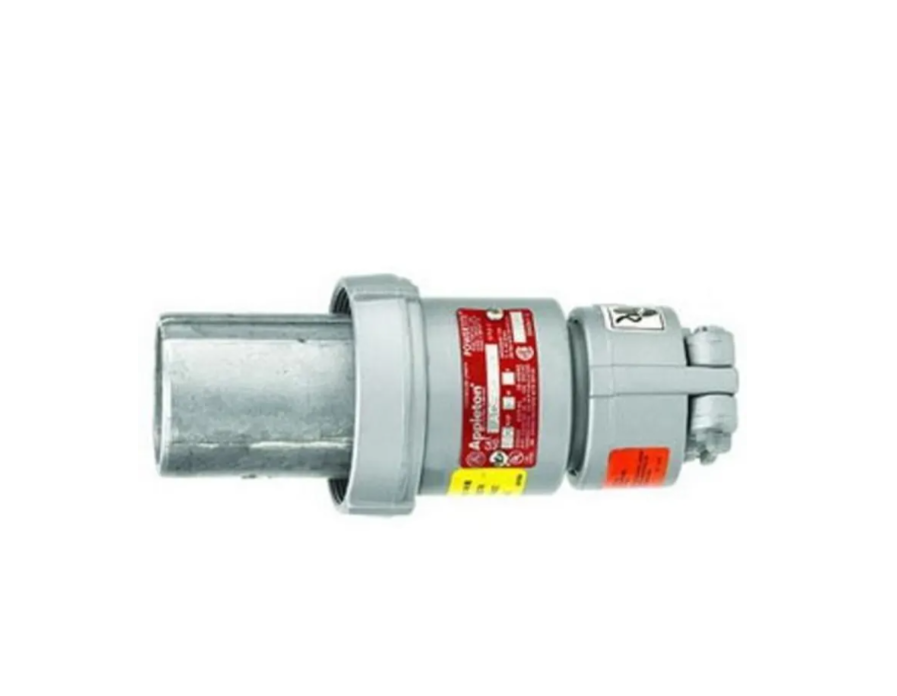

Appleton ACP6033CRS 60A 3-Pole, 3-Wire Powertite Grounding Style 1 Metallic Clamping Ring Plug

Product Specifications

• Brand: Appleton®
• Manufacturer: Appleton (Emerson)
• Manufacturer Part Number: ACP6033CRS
• Product Type: Powertite Grounding Clamping Ring Plug
• Description: 60A, 3-pole, 3-wire Powertite grounding plug with metallic clamping ring
• Amperage Rating: 60 A
• Voltage Rating: 600 VAC / 250 VDC
• Number of Poles/Wires: 3-Pole, 3-Wire
• Wire Size: 6–2 AWG (Building), 6–4 AWG (Extra Flex)
• Material: Copper-free aluminum
• Color: Metallic
• Country of Origin: Mexico
• Frequency Rating: 50–400 Hz
• NEMA Rating: NEMA 3/3R/4/4X
• Terminal Type: Pressure Wire
• Temperature Rating: -40 to 225 °F
• Type: 3-Phase Grounding Style 1
• Application: Industrial, portable and fixed equipment in wet, corrosive, and harsh environments
• Catalog Description: Appleton ACP6033CRS Powertite grounding plug; 60A, 3-pole, 3-wire; metallic clamping ring; copper-free aluminum; NEMA 3/3R/4/4X rated for industrial use
• Full Technical Description: Heavy-duty Appleton ACP6033CRS Powertite Grounding Style 1 Clamping Ring Plug; 60 Amp, 3-Pole, 3-Wire; Accommodates 6–2 AWG building wire, 6–4 AWG extra flex; Copper-free aluminum; Metallic clamping ring; NEMA 3/3R/4/4X rated; Pressure wire terminals; Suitable for harsh industrial, commercial, and outdoor environments
• SKU Name: appleton acp6033crs 60a 3-pole 3-wire grounding clamping ring plug
