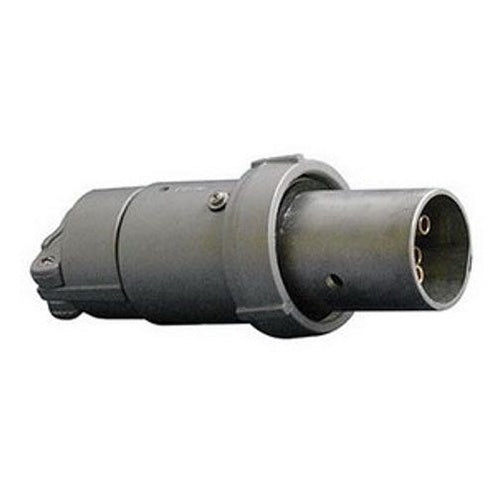

Appleton ACP6044BCRS 60A 4W4P Plug

Product Specifications

• UPC: 78138171097
• Grounding Style: 1, Shell
• Minimum Cable Outer Diameter: 0.5 Inch
• Maximum Cable Outer Diameter: 1.375 Inch
• Material: Epoxy Powder Coated Copper Free Aluminum
• Approval: UL 1682/1689/50E, CSA C22.2
• Additional Information: Contact Material Brass; Application Compressor, Generator Unit, Pump, Shipping Docks, Shipping Ports, Welding
• Catalog Number: ACP6044BCRS
• Brand Name: Powertite[R]
• Type: Compressor, Motor Generator Unit, Polarized, Pump, Reverse Service, Welding, Clamping Ring
• Constructional Feature: Weatherproof
• Voltage Rating: 600 VAC 3-Phase at 50 to 400 Hz, 250 VDC
• Current Rating: 60 Ampere
• Number Of Poles: 4
• Number Of Wires: 4
• Catalog Description: POWERTITE GROUNDING STYLE 1 METALLIC CLAMPING RING PLUG, NUMBER OF POLES: 4, NUMBER OF WIRES: 4, WIRE SIZE: 6 - 2 AWG (BUILDING), 6 - 4 AWG (EXTRA FLEX), AMPERAGE RATING: 60 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE:
• Category: Pin & Sleeve Devices
• Full Technical Description: Compressor, Clamping Ring, Motor Generator Unit, Pump, Positive Polarization, Reverse Service, Welding Type; Epoxy Powder Coated Copper-Free Aluminum Material; 0.5 Inch min. Cable Outer Diameter; 1.375 Inch Max. Cable Outer Diameter; 4 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 60 Amp Current Rating; 4 Pole(S); Weatherproof; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Recess Diameter 0.312 Inch; Contact Material Brass; Finish Fiberglass Reinforced Polyester (Insulating Block); Enclosure Rating NEMA 3/4/4X; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 781381710978
• SKU Name: app acp6044bcrs
