Overview

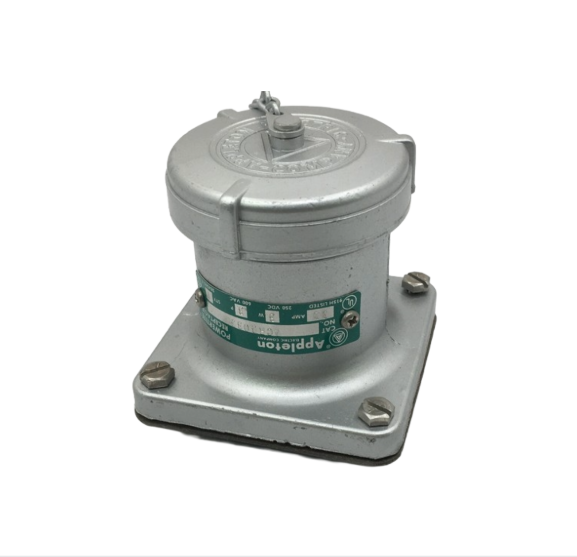

Appleton ACR3033 30A 3-Pole 3-Wire Pin & Sleeve Receptacle, Weatherproof, Powertite Series

Product Specifications

• Brand: Appleton
• Manufacturer: Appleton
• Manufacturer Part Number: ACR3033
• Catalog Number: ACR3033
• Product Type: Pin & Sleeve Receptacle
• Series/Frame: Powertite
• Description: 30A, 3-pole, 3-wire pin & sleeve receptacle for industrial applications
• Amperage Rating: 30 A
• Voltage Rating: 600VAC / 250VDC
• Number of Poles: 3
• Number of Wires: 3
• Wire Size: 10–6 AWG (Building), 10–8 AWG (Extra Flex)
• Material: Copper-Free Aluminum
• NEMA Rating: 3 / 3R / 4 / 4X
• Compatibility: ACP3033 Plug, ARC3033 Connector Body
• Condition: Used, fully functional
• Construction: Durable aluminum housing, weatherproof
• Application: Industrial power distribution, heavy-duty electrical connections
• Category: Electrical Products / Pin & Sleeve Devices
• Full Technical Description: Appleton ACR3033 is a 30A, 3-pole, 3-wire Powertite series pin-and-sleeve receptacle. Designed for 600VAC/ 250VDC and NEMA 3/3R/4/4X, it provides reliable, heavy-duty connections in industrial environments. Compatible with ACP3033 plug and ARC3033 connector body. Features durable copper-free aluminum construction, suitable for 10–6 AWG building and 10–8 AWG extra-flex wiring, ensuring secure, long-lasting performance.
