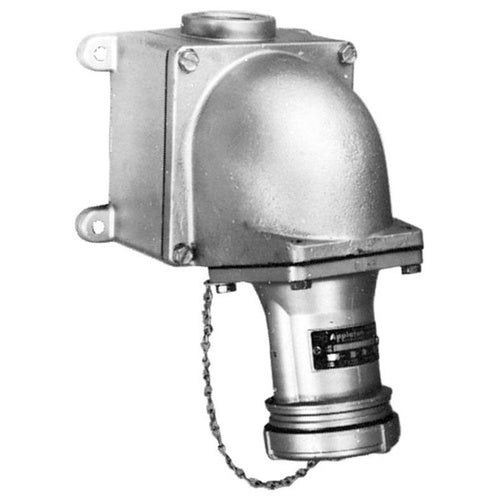

Appleton AE332 30A 2-Wire 3-Pole Arktite Pin-and-Sleeve Receptacle

Overview

Appleton AE332 30A 2-Wire 3-Pole Arktite Pin-and-Sleeve Receptacle

Product Specifications

• Manufacturer: Appleton
• Manufacturer Part Number: AE332
• Catalog Number: AE332
• Product Type: Pin-and-Sleeve Receptacle
• Series/Frame: AE Series
• Description: 30A, 2-wire, 3-pole industrial-grade receptacle for harsh environments
• Amperage Rating: 30 A
• Voltage Rating: 600 V AC / 250 V DC
• Number of Poles: 3
• Number of Wires: 2
• Material: Copper-Free Aluminum with Epoxy Powder Coat
• Insulation Material: Fiberglass-Reinforced Phenolic Blocks
• Contact Material: Solid Brass with Beryllium Copper Springs
• Grounding Style: Style 1 (Shell Grounding)
• Environment: Weatherproof, rain-tight, industrial-grade
• Design Features: Positive polarization ensures correct mating of plugs and receptacles; choice of rain-tight screw caps or spring doors
• Full Technical Description: Appleton AE332 is a heavy-duty 30A, 2-wire, 3-pole pin-and-sleeve receptacle designed for industrial and hazardous environments. The unit features a durable epoxy-coated, copper-free aluminum housing, solid brass contacts with beryllium-copper springs, and fiberglass-reinforced phenolic insulation. Rated for 600VAC/250VDC, the AE332 provides reliable weatherproof power connections for portable equipment, welders, motor-generator units, and other heavy-duty industrial applications.
