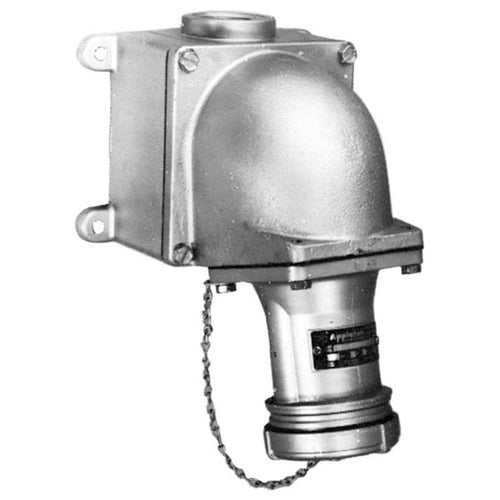

Appleton AE341 30A 4-Wire 4-Pole Arktite Pin-and-Sleeve Receptacle

Overview

Appleton AE341 30A 4-Wire 4-Pole Arktite Pin-and-Sleeve Receptacle

Product Specifications

• Brand: Appleton Arktite
• Manufacturer: Appleton
• Manufacturer Part Number: AE341
• Catalog Number: AE341
• UPC: 78138112935
• Product Type: Pin-and-Sleeve Receptacle
• Series/Frame: AE Series
• Description: 30A, 4-wire, 4-pole industrial-grade receptacle for harsh environments
• Amperage Rating: 30 A
• Voltage Rating: 600 V AC / 250 V DC
• Number of Poles: 4
• Number of Wires: 4
• Material: Copper-Free Aluminum with Epoxy Powder Coat
• Design Features: Flip-cover for added weather protection; rugged housing built for industrial use
• Environment: Weatherproof, industrial-grade
• Full Technical Description: The Appleton AE341 is a heavy-duty 30A, 4-wire, 4-pole pin-and-sleeve receptacle designed for high-demand industrial applications, including motors, compressors, and generators. Constructed from epoxy-coated copper-free aluminum, the AE341 provides durable, reliable, weather-resistant power connections. The flip-cover design enhances protection against harsh environmental conditions, ensuring safe and consistent electrical connections in demanding industrial settings.

Resources

• Manufacturer Spec Sheet
