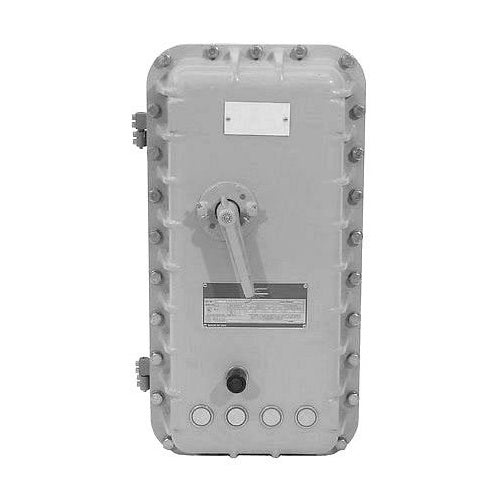

Appleton AE3BA Motor Starter Enclosure

Product Specifications

• UPC: 78138185450
• Catalog Number: AE3BA
• Brand Name: Appleton[R]
• Model: AEB
• Control Device Size: NEMA 3
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/7BCD/9EFG
• Material: GRAY EPOXY POWDER COATED COPPER FREE CAST ALUMINUM
• Used On: FULL VOLTAGE NON REVERSING STARTER
• Catalog Description: MOTOR STARTER ENCLOSURE, TYPE BOLTED, CONTROL DEVICE SIZE NEMA 3, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS I ZONE 1 AND 2 GROUP IIB, CLASS II, DIV 1 AND 2 GROUP E F G, NEMA 4/4X/7BCD/9EFG, MATERIAL CORROSION RESISTANT GRAY EPOXY POWDER COATED COPPER FREE ALUMINUM, USED ON FULL VOLTAGE NON REVERSING MOTOR STARTER, APPLICATION HAZARDOUS LOCATION
• Category: Starter Accessories
• Full Technical Description: Gray Epoxy Powder Coated Copper-Free Aluminum Material; Aeb Full Voltage/Non-Reversing Bolted Motor Starter Used on; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iib + H2, Class III, NEMA 4/4X/7BCD/9EFG Enclosure; NEMA 3 Control Device Size; Overall Dimension 14.875 Inch Width X 11.38 Inch Depth X 27.62 Inch Height; Hub Size 2 Inch; Applicable Standard Nec/Cec; AEB Model
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Motor Control Enclosure
• Unspsc: 39121331
• UPC 12 Digit: 781381854504
• SKU Name: app ae3ba
