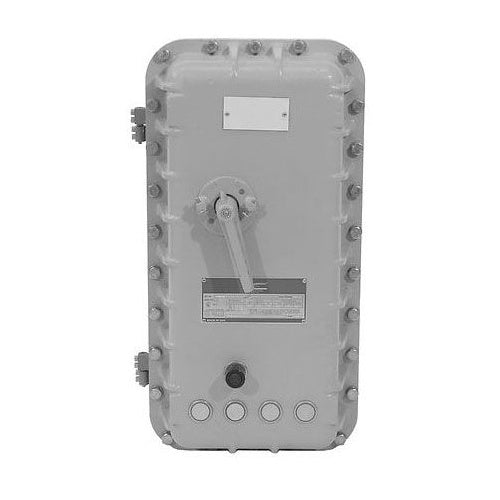

Appleton AE3BB2W1CN Size-3 100A 240 Combination Starter

Overview

Appleton AE3BB2W1CN Size-3 100A 240 Combination Starter

Product Specifications

• UPC: 78138185456
• Number Of Phases: 3
• Enclosure Type: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/7B/7C/7D/9E/9F/9G
• Material: CORROSION RESISTANT GRAY POWDERED EPOXY COATED (INSIDE, OUTSIDE) COPPER FREE ALUMINUM BODY, COVER; STAINLESS STEEL COVER BOLT HINGE; NEOPRENE O-RING
• Device Type: THERMAL MAGNETIC BREAKER
• Device Rating: 100 AMPERE
• Conduit Size: 1-1/2 INCH
• Size: NEMA 3
• Approval: CSA C22.2
• Catalog Number: AE3BB2W1CN
• Brand Name: Appleton[R]
• Model: AEB
• Type: FULL VOLTAGE NON REVERSING STARTER WITH THERMAL MAGNETIC BREAKER, TWO SPEED, SINGLE WINDING
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF, WATER TIGHT
• Motor/Line Voltage: 240 V
• Power Rating: 15 HP
• Number Of Poles: 5
• Catalog Description: BOLTED MOTOR STARTER AND CONTACTOR, TYPE FULL VOLTAGE NON-REVERSING STARTER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST IGNITIONPROOF, WATERTIGHT, MOTOR/LINE VOLTAGE 240 VAC, ENCLOSURE TYPE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, MATERIAL EPOXY COATED COPPER FREE ALUMINUM, DEVICE TYPE THERMAL MAGNETIC CIRCUIT BREAKER, DEVICE RATING 100 AMPERE, CONDUIT SIZE 2-1/2 INCH, SIZE NEMA 3, APPROVAL UL, CSA, APPLICATION HAZARDOUS LOCATION
• Category: Nema Combination Starters
• Full Technical Description: Full Voltage Non-Reversing, Bolted Type; Gray Epoxy Powder Coated (Inside/Outside), Copper-Free Aluminum (Body/Cover), Stainless Steel (Cover Bolt/Hinge/Handle/Breaker/Operator Shaft), Neoprene (O-ring) Material; NEMA 3 Size; 3 Phase(S); UL 50/508/1203, CSA (Canada and Us), CSA C22.2 Approval; Explosionproof, Dust Ignitionproof, Water Tight; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iib + H2, Class III, NEMA 4/4X/7BCD/9EFG Enclosure Type; 2-1/2 Inch Conduit Size; Thermal Magnetic Circuit Breaker Device Type; 100 Amp Device Rating; 240 Volt AC 60 Hertz Motor/Line Voltage; Control Voltage Rating 120 Volt AC Coil; Applicable Standard Nec/Cec; AEB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Combination Motor Starter
• Unspsc: 39121521
• UPC 12 Digit: 781381854566
• SKU Name: app ae3bb2w1cn
