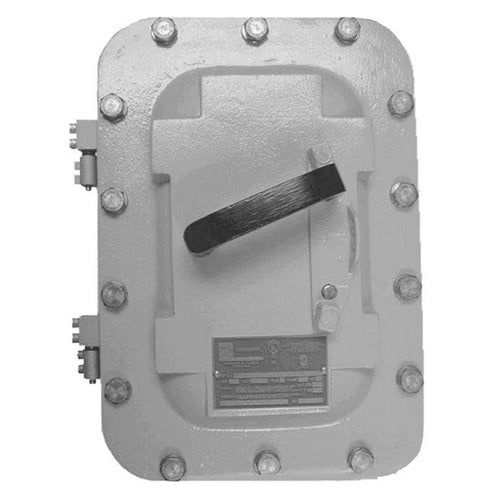

Appleton AEAB Circuit Breaker Enclosure

Overview

Appleton AEAB Circuit Breaker Enclosure

Product Specifications

• UPC: 78138185602
• Used On: AE Series Circuit Breaker
• Approval: UL 1203
• Catalog Number: AEAB
• Type: Dust Ignitionproof, Explosionproof, Watertight
• Breaker Voltage Rating: 600 VAC, 125/250 VDC
• Breaker Current Rating: 30 to 50 Ampere
• Number Of Breaker Poles: 3
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X/7/9
• Material: Copper Free Aluminum
• Finish: Gray Epoxy Powder Coated
• Catalog Description: CIRCUIT BREAKER ENCLOSURE, TYPE EXPLOSIONPROOF, DUST-IGNITIONPROOF, WATERTIGHT, NUMBER OF BREAKER POLES 3, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X, MATERIAL COPPER FREE ALUMINUM, FINISH GRAY EPOXY POWDER COATED, USED ON AE SERIES CIRCUIT BREAKER, APPROVAL UL 1203
• Category: 3 Pole Circuit Breaker Enclosures
• Full Size Image: h
• Full Technical Description: Explosionproof, Dust Ignitionproof, Water Tight, Bolted Type; Copper-Free Aluminum Material; Gray Epoxy Powder Coated Finish; Ae Circuit Breaker Used on; UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X Enclosure; 2 or 3 Breaker Pole(S); 600 Volt AC, 125/250 Volt DC Breaker Voltage Rating; 15 to 50 Amp Breaker Current Rating; Overall Dimension 10.5 Inch Width X 6.5 Inch Depth X 15.3 Inch Height; Outlet Size (2) 1-1/2 Inch; Application Hazardous Location, Overload and Short Circuit Protection, Control of Lighting and Power Circuit; Applicable Standard Nec/Cec
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Circuit Breaker Enclosure
• Unspsc: 39121331
• UPC 12 Digit: 781381856027
• SKU Name: app aeab
